ABB V-Contact VSC Series User Manual

18
VSC12/F
(1) Thewidthofthecontactorvariesaccordingtothepresenceofthe
interfacing shafts
(2) Holeforgroundingthecontactor
(3) Themaximumtorquewhichcanbeappliedtotheinterfacingshafts(right
and left) is 2 Nm. The rotation angle is about 10°.
Fig. 5c
Fig. 5d

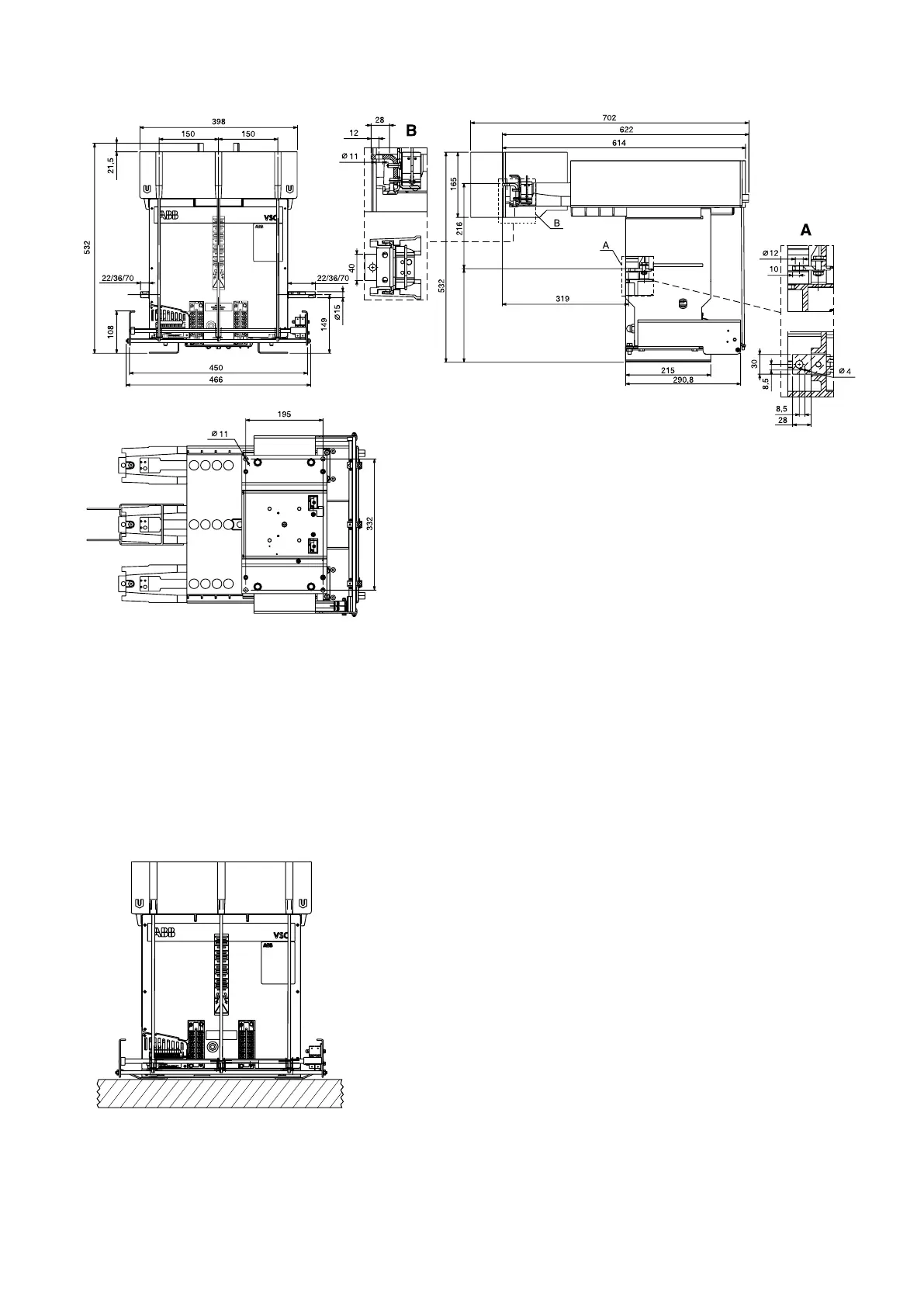

Installation of the fixed contactor with VSC/F - VSC/FN fuses
