VD4/R - VD4/L - VD4/R-SEC - VD4/L-SEC - INSTALLATION AND OPERATING INSTRUCTIONS 34
—
12. Overall dimensions

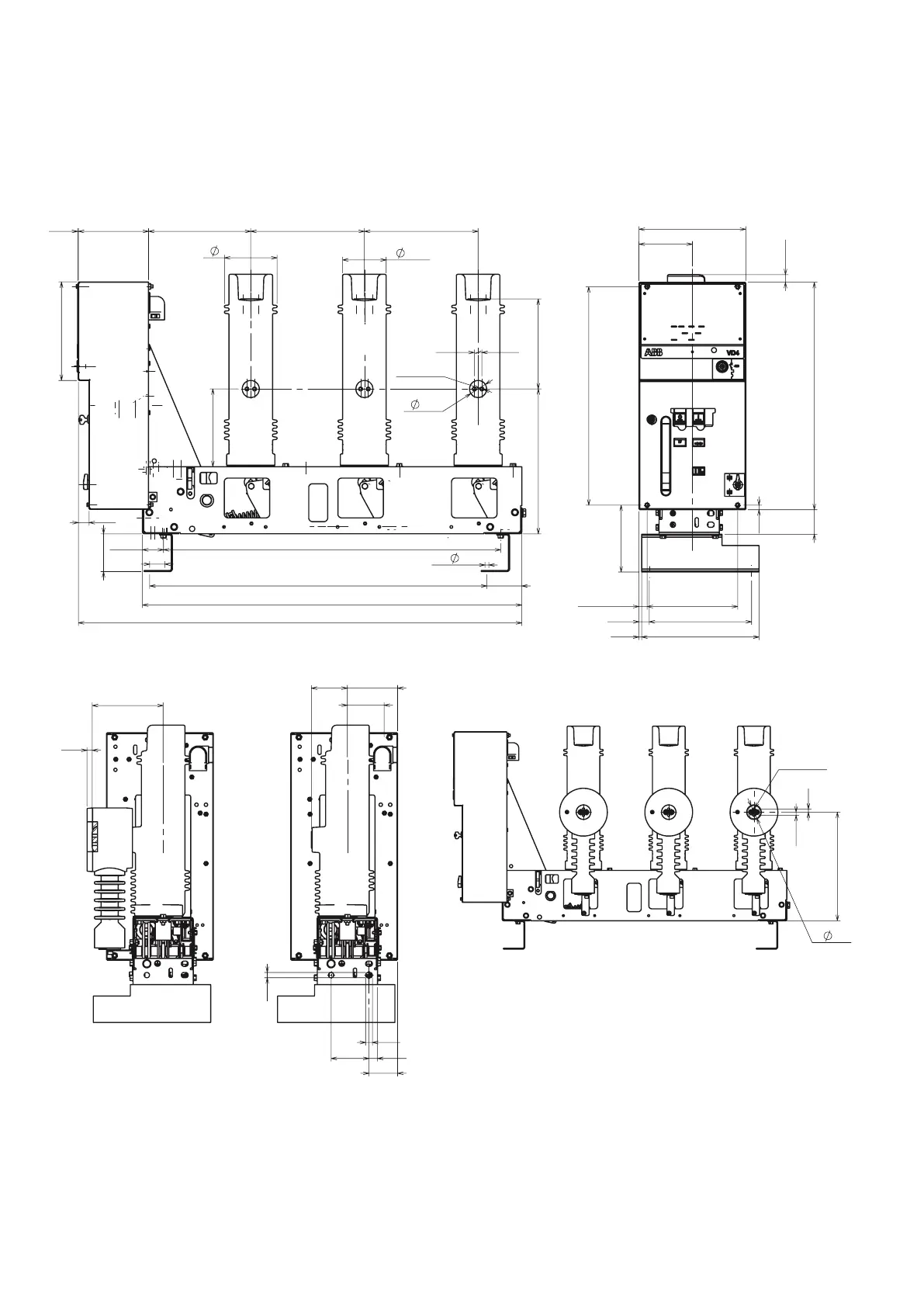

Fixed circuit breaker with rh lateral operating mechanism - 12-17.5-24 kV pole center-distance P = 300 mm
TN 1VCD000101

ABB VD4 Specifications

General

Type	Vacuum Circuit Breaker
Rated Voltage	Up to 36 kV
Rated Short-Circuit Breaking Current	Up to 63 kA
Frequency	50/60 Hz
Standards	IEC 62271-100
Application	Medium voltage power distribution
Rated Short-Time Withstand Current	Up to 63 kA for 3 seconds
Mechanical Life	Up to 30, 000 operations
Installation	Fixed / Withdrawable
Operating Mechanism	Spring-operated
Rated Current	630 A / 800 A / 1250 A / 1600 A / 2000 A / 2500 A / 3150 A / 4000 A
Electrical Life	Up to 10, 000 operations at rated current
Control Voltage	24 V DC, 48 V DC, 110 V DC, 220 V DC, 110 V AC, 230 V AC
