2. Inspection on arrival
Upon arrival, check the condition of the
apparatus, that the packing is undamaged and
that the nameplate data (see fig. 1) correspond to
the information in the order confirmation and
shipping note. Also make sure that all the
materials described in the shipping note are
included in the supply. Should any damage or
irregularity be noted in the supply on unpacking,
notify ABB (directly or through the agent or
supplier) as soon as possible and in any case
within five days of receipt. The apparatus is only
supplied with the accessories specified at the
time of ordering and validated in the order
confirmation sent by ABB.
Before proceeding with any operation,
always make sure that the springs of the
operating mechanism are discharged and
that the apparatus is in the open position.
The following documents accompany the
apparatus when it is shipped:
instruction manual (this document)
test certificate
identification label
copy of the shipping documents
wiring diagram.
Other documents, sent prior to shipment of the
apparatus, are:
order confirmation
original shipping notification
any drawings or documents referring to special
configurations/ conditions.
Key

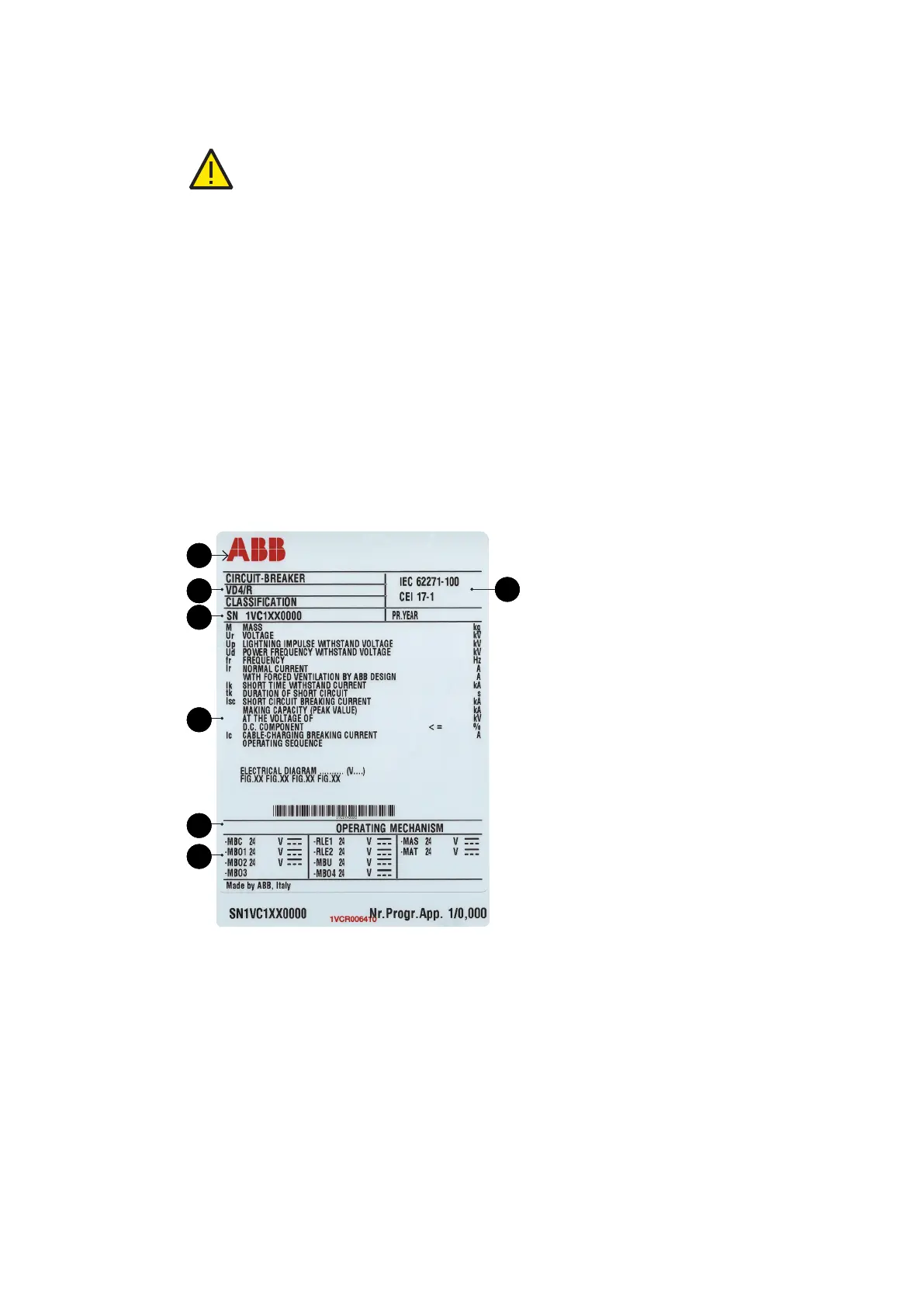

A Circuit breaker rating plate
B Operating mechanism rating plate
1 Type of apparatus
2 Symbols indicating compliance with Standards
3 Serial number
4 Circuit breaker specifications
5 Characteristics of the operating mechanism auxiliaries
Figure 1
A
1
3
4
B
5
2
A
1
3
4
B
5
2
A
1
3
4
B
5
2
A
1
3
4
B
5
2
