VersaRupter MV Indoor Switch | Installation and Operation Manual 22
Mounting the NM Motor Operator on K-Mechanism

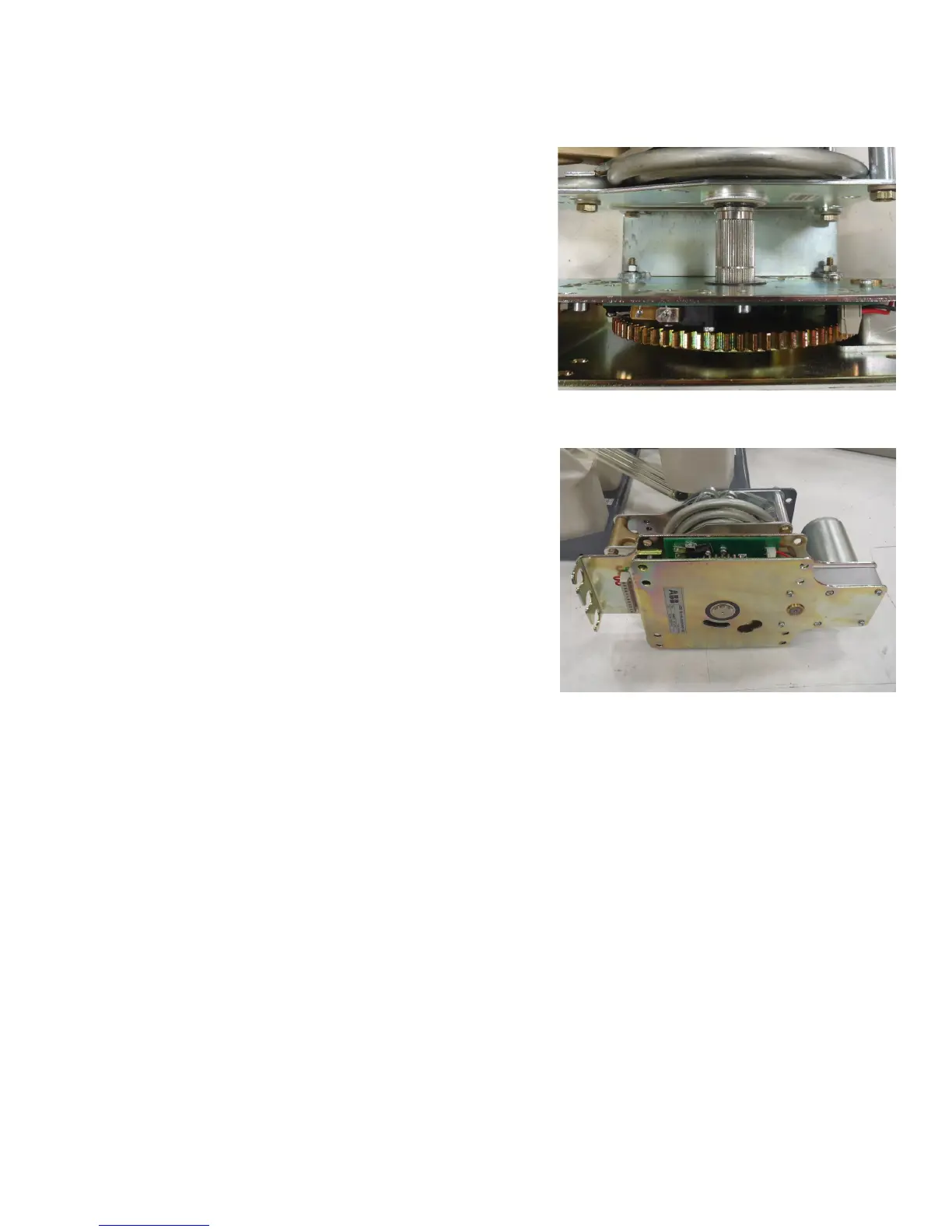

4. Slide the NM motor onto the splined shaft of the K-
mechanism and secure it with bolts, washer, lock
washers, and nuts as shown in figure 40.
Figure 40
Figure 41
