ABB WaterMaster - Page 14

WaterMaster
Electromagnetic flowmeter 3 Mechanical Installation
12 IM/WM–EN Rev. M
DN 40 to 200 Full Bore

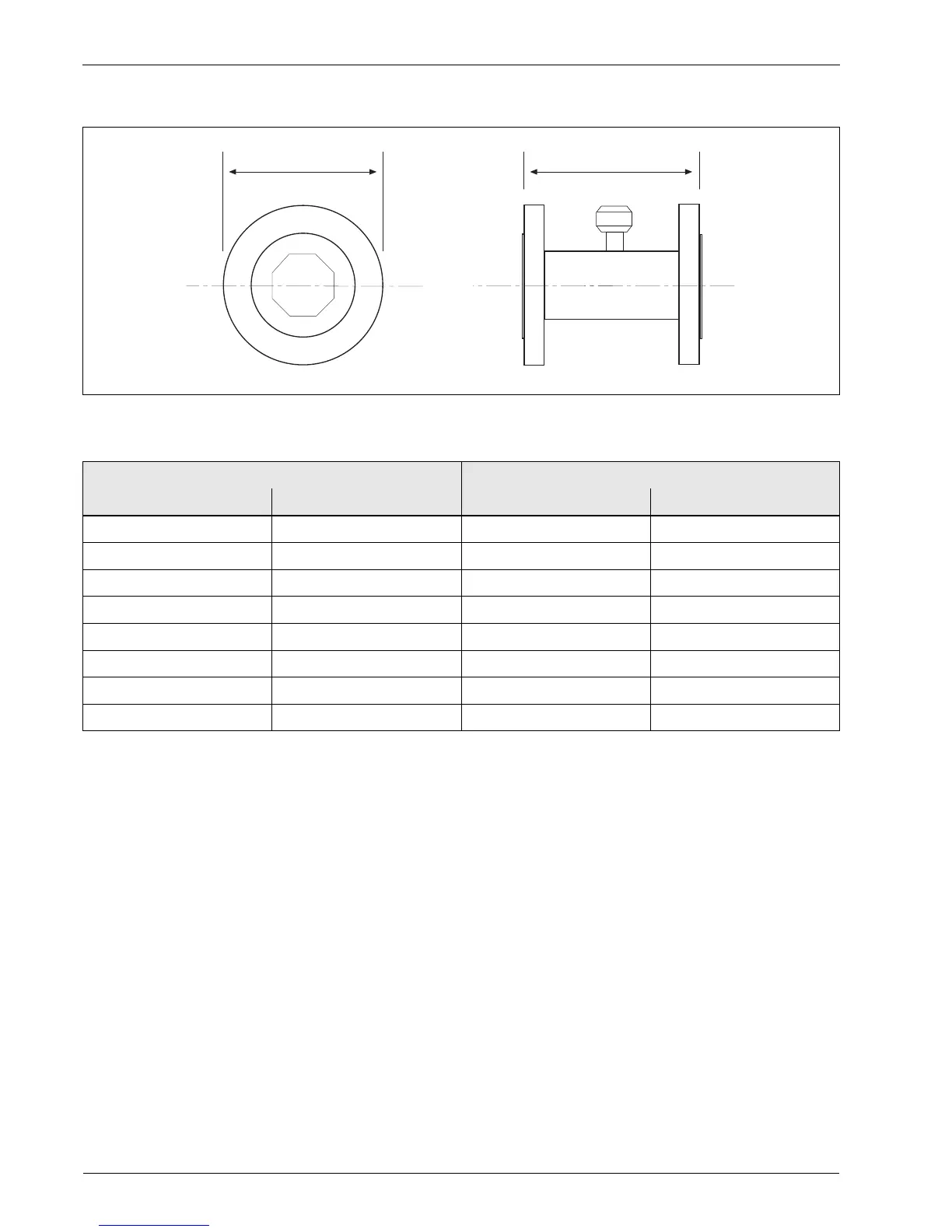

Fig. 3.21 DN40 to 200 (1
1/
2
to 8 NB) Full-bore
Meter Size Dimensions mm (in)
DN NPS/NB A* B
40 1
1/
2
150 (5.9) 200 (7.9)
50 2 165 (6.5) 200 (7.9)
65 2.5 185 (7.2) 200 (7.9)
80 3 200 (7.9) 200 (7.9)
100 4 230 (9.1) 250 (9.8)
125 5 250 (9.9) 250 (9.8)
150 6 280 (11.0) 300 (11.8)
200 8 345 (13.6) 350 (13.8)
*Dimensions are approximate and vary depending on flange type
Table 3.2 DN40 to 200 (1
1/
2
to 8 NB) Full-bore
BA
Max. Max.
