4.2 Remote Transmitter / Sensor Arrangement

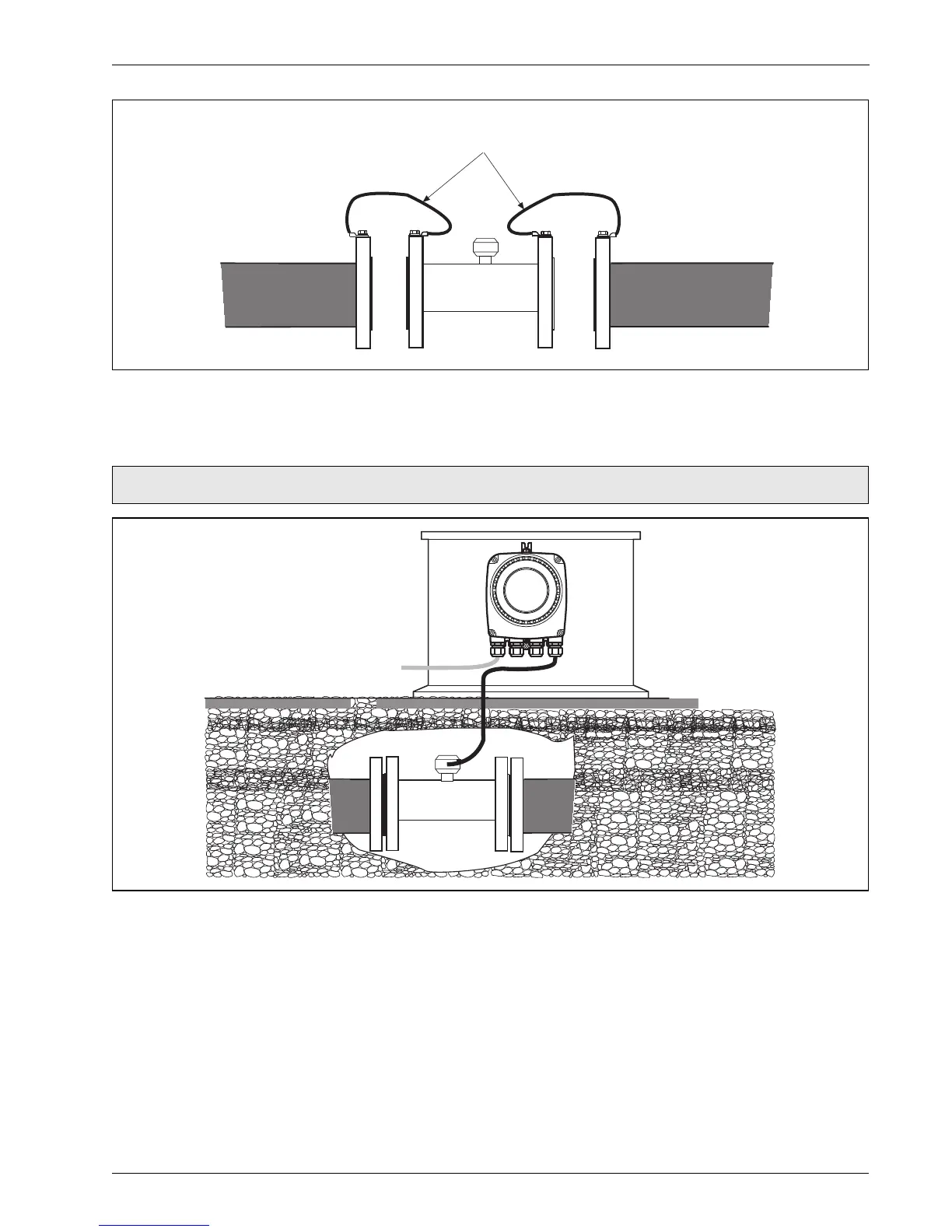

Fig. 4.6 Pipelines with Cathodic Protection
Note. For bonding connections use 4mm
2
(< 10AWG) cable.
Fig. 4.7 Remote Transmitter in Roadside Cabinet
Fluid Contact Rings
Bonding Cables (Supplied)
Caution. Do NOT ground
cathodically protected
systems
Power Supply
