Electromagnetic flowmeter 4 Electrical Installation
16 IM/WM–EN Rev. M

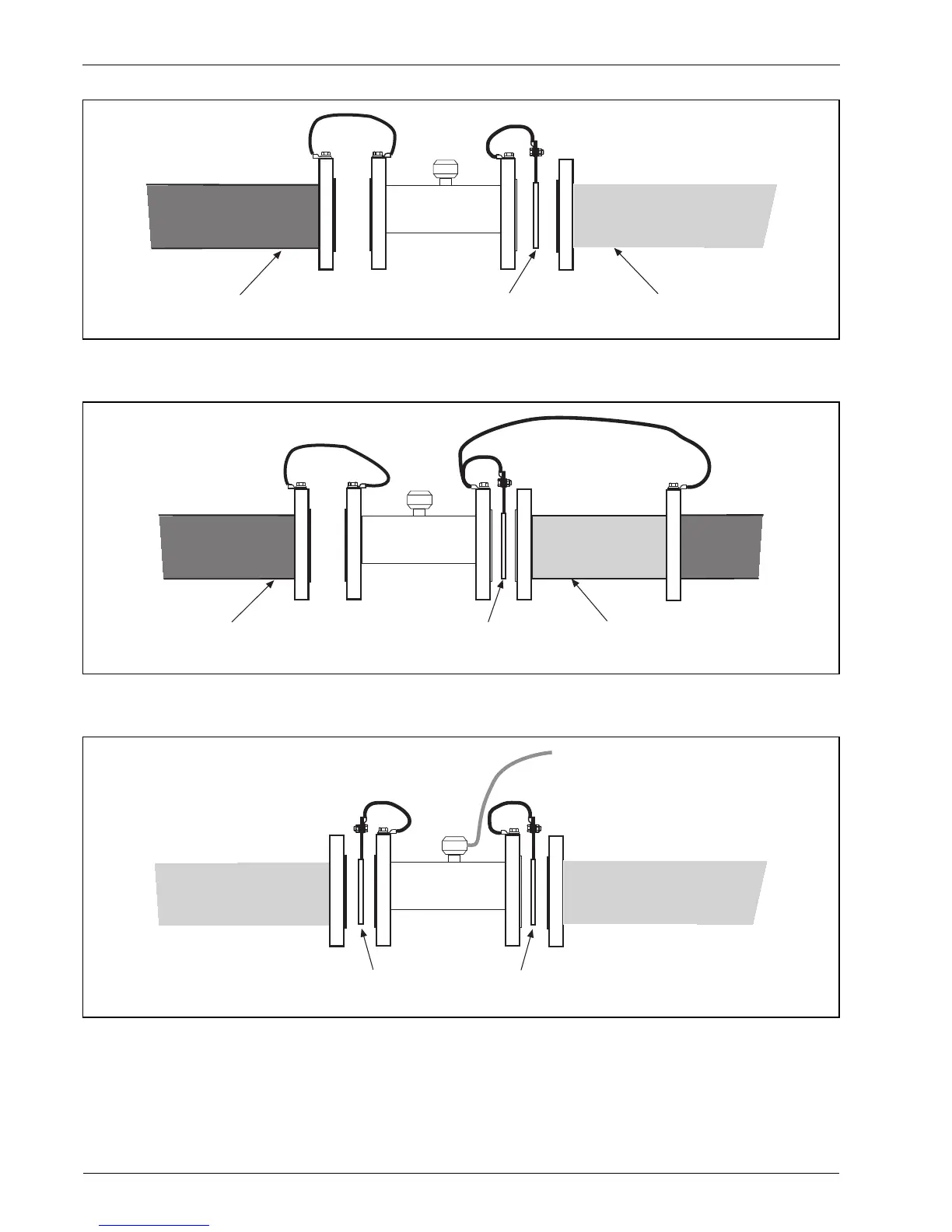

Fig. 4.3 Flanged Metal Pipe to Plastic Pipe
Fig. 4.4 Metal Pipe with Plastic Make-up Insert
Fig. 4.5 All-plastic Pipe
Plastic Pipe
Metal Pipe
Optional Fluid
Contact Ring
Plastic Pipe
Metal Pipe
Optional Fluid
Contact Ring
Refer to Section 4.2, page 17
Optional Fluid Contact Rings
