5 Start-up and Operation
5.1 Navigating the Menus and Parameters
The four keys below the display are used to navigate through the menus and to execute all system
commands and selections.
Note. This section describes the options available at the 'Easy Setup' menu. Refer to the Programming
Manual (IM/WMP) for comprehensive details of all end-user menus and operating levels.

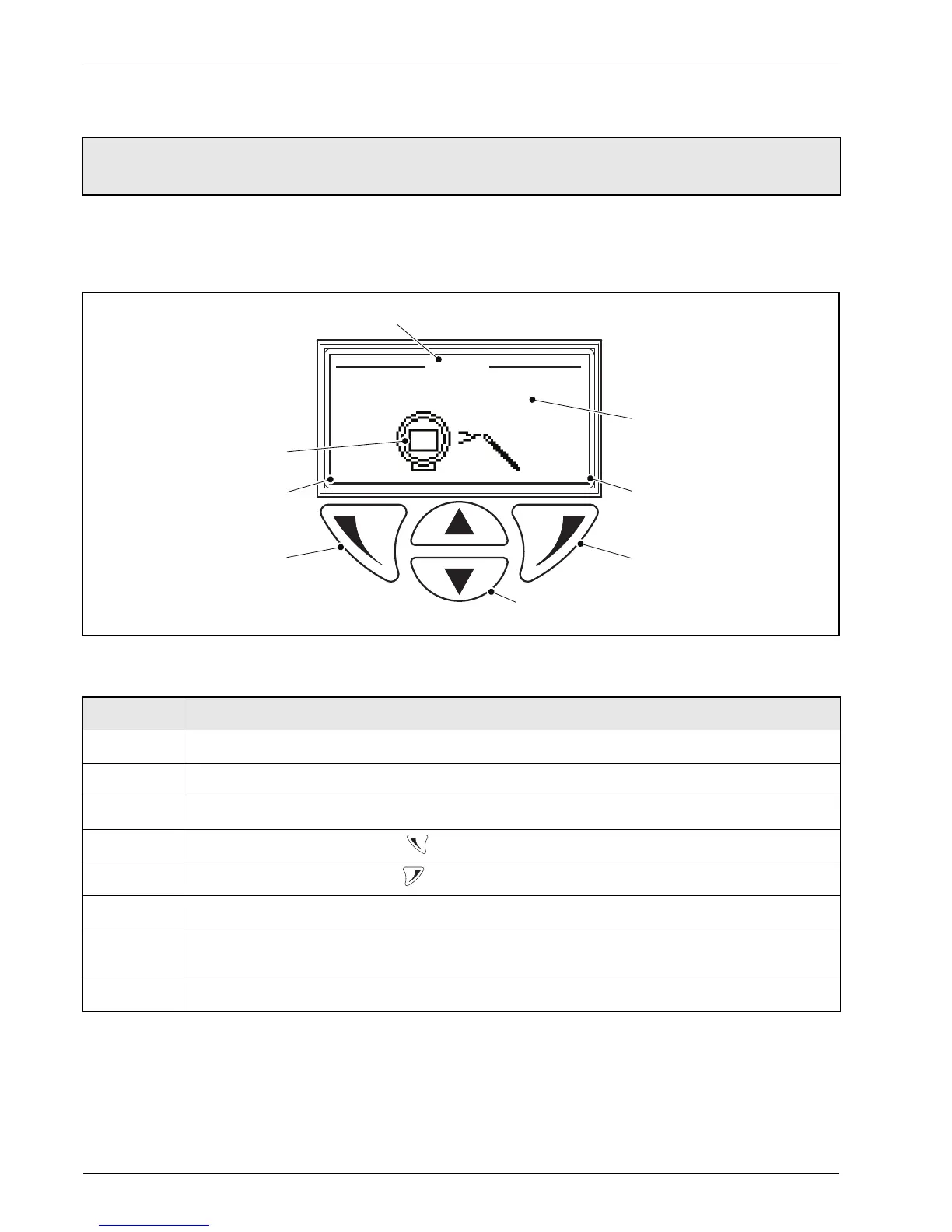

Fig. 5.1 Display and Keys
Item Description
A Screen title at the current level / parameter
B Main level icon
C Menu level title
D Prompt executed by pressing the key
E Prompt executed by pressing the key
F Left key – used for parameter navigation and to enter editable parameters
G Up / Down keys – used to scroll through menu options and to increase / decrease values in editable
parameters
H Right key – used to accept / select parameter values / selections and exit sub-levels
Exit Select
Menu
Easy Setup
A
B
D
E
C
F
G
H
