Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.9 Dismantling the gas inlet casing,
nozzle ring (A180-L and larger)
© Copyright 2018 ABB. All rights reserved.
HZTL4034_EN
Revision N
November 2018
Dismantling the nozzle ring

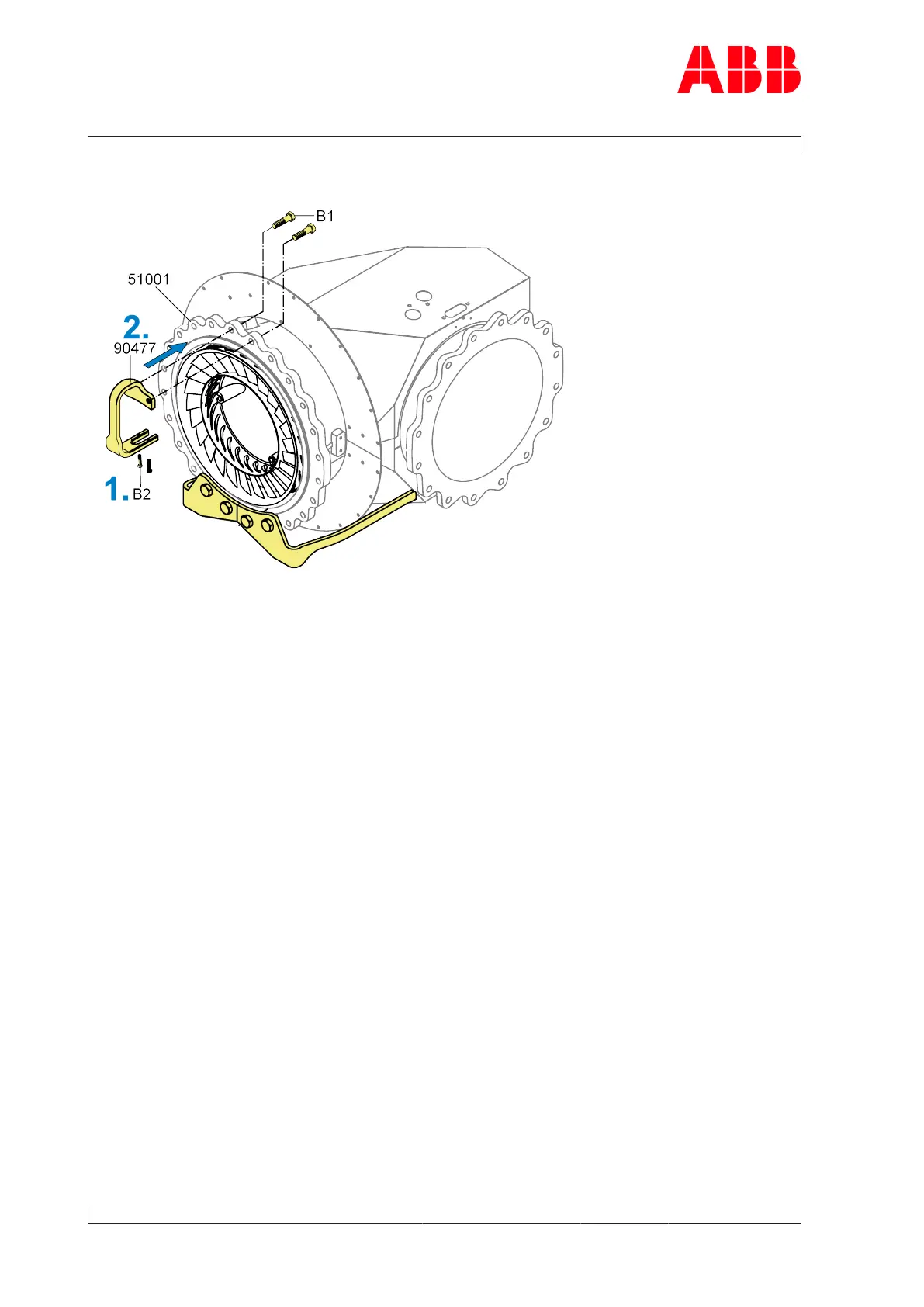

Fig.44: Fitting the nozzle ring holder
1.
Remove screws (B
2
).
2.
Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
