Operation Manual / 4 Product description / A100-L

8 Disassembly and assembly / 8.14 Fitting the filter silencer

8.14 Fitting the filter silencer

8.14.1 Design variants

The turbocharger is equipped with one of the following filter silencer variants:

¡ Welded filter silencer

¡ Cast filter silencer

The filter silencers differ in terms of the fixing eyelets for the lifting gear. The relevant vari-

ant must be taken into consideration for disassembly and assembly.

8.14.2 Fitting the filter silencer (welded)

If the turbocharger is also fitted with a noise package, chapter Fitting the filter silencer with

noise package →88 must be observed.

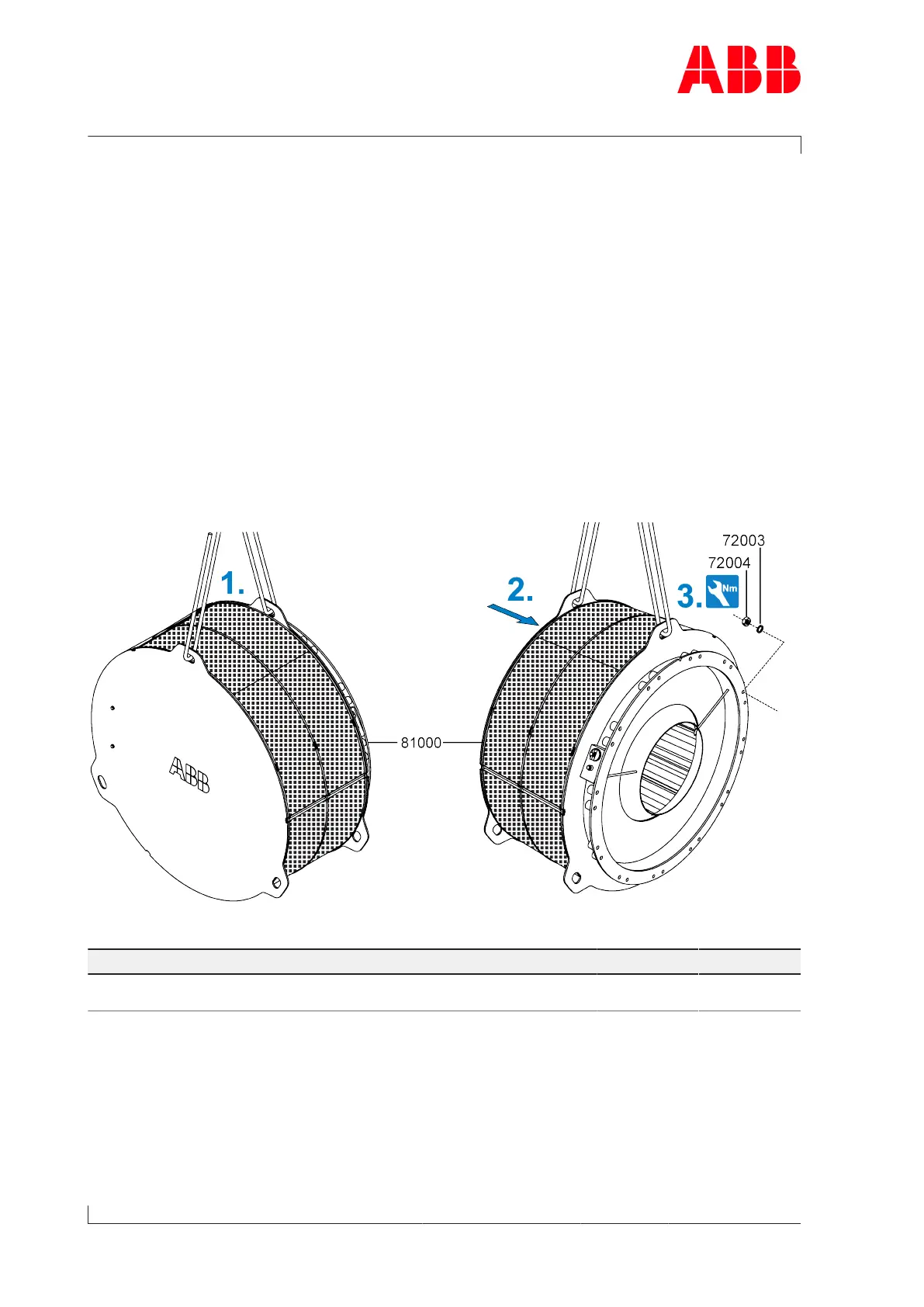

Fig.59: Fitting the filter silencer

Part number A165-L A170-L A175-L A180-L A185-L A190-L

72004 M14

130Nm

M16

200Nm

M18

300Nm

M20

420Nm

M22

570Nm

M24

710Nm

Table42: Tightening torque (72004)

1. Attach lifting gear to the eyelets of the filter silencer (81000).

2. Position filter silencer on compressor casing.

3. Fit nuts (72004) with washers(72003) and tighten.

u Fit insulation as far as necessary.

Page 86 / 110

ABB XAC21390 User Manual
