Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.3 Disassembly and assembly of the
filter silencer casing
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
Screws for fastening the individual parts to
the filter silencer
Screws for fastening the individual parts
M10
30Nm
M8
25Nm
Table29: Tightening torques (filter silencer screws)
u Tighten all screws of the bottom parts(01) and (02).
u Tighten all screws of the side parts(03, 04, 07, 08) and the flanges(10, 11).
u Tighten all screws of the circumferential parts(05, 06, 09).
Bellows

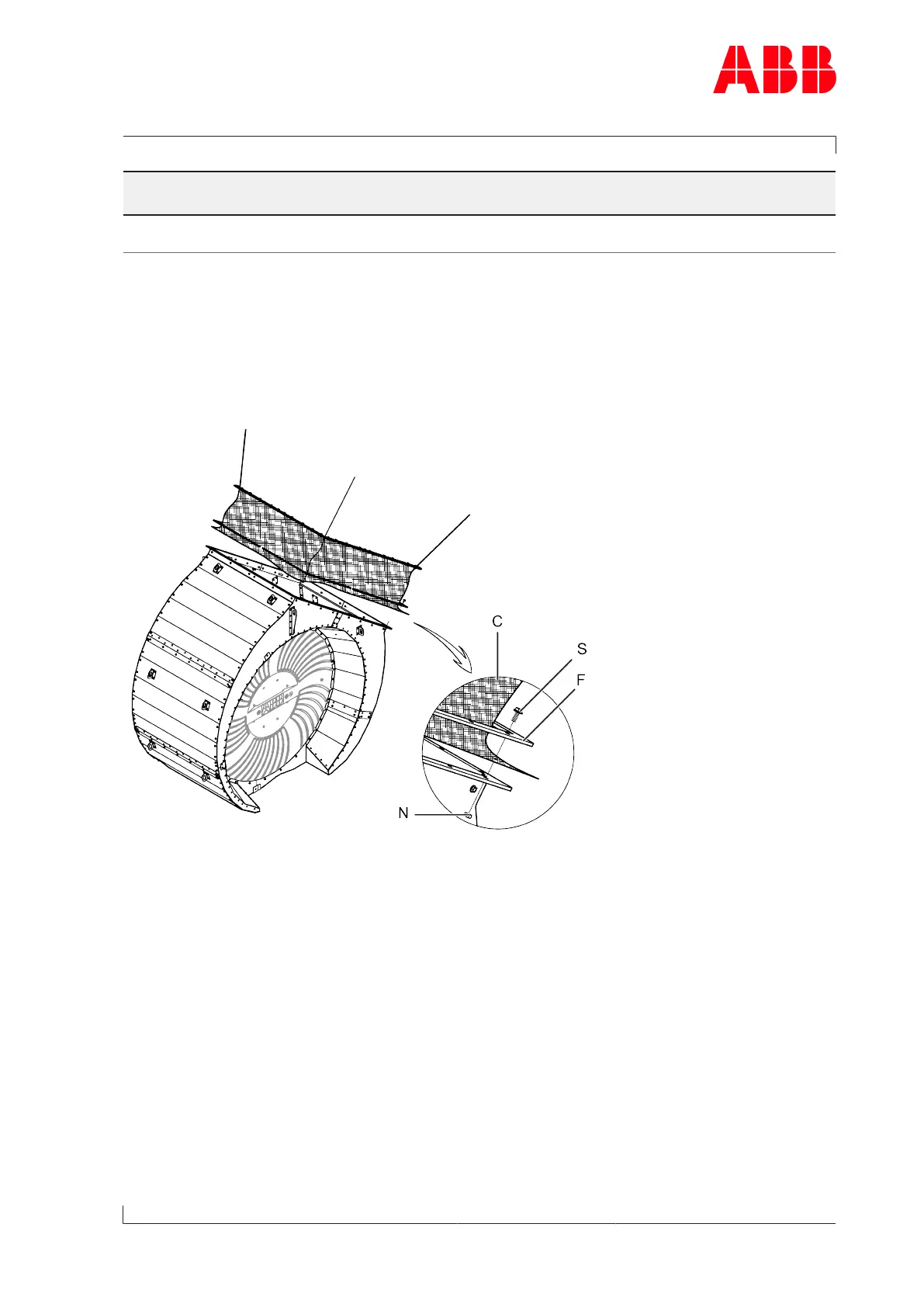

Fig.28: Fitting the bellows
u Fit bellows(C) with frame(F), screws(S) and nuts(N) on the filter silencer casing.
