Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.6 Dismantling wall insert and diffuser
© Copyright 2018 ABB. All rights reserved.
HZTL4034_EN
Revision N
November 2018

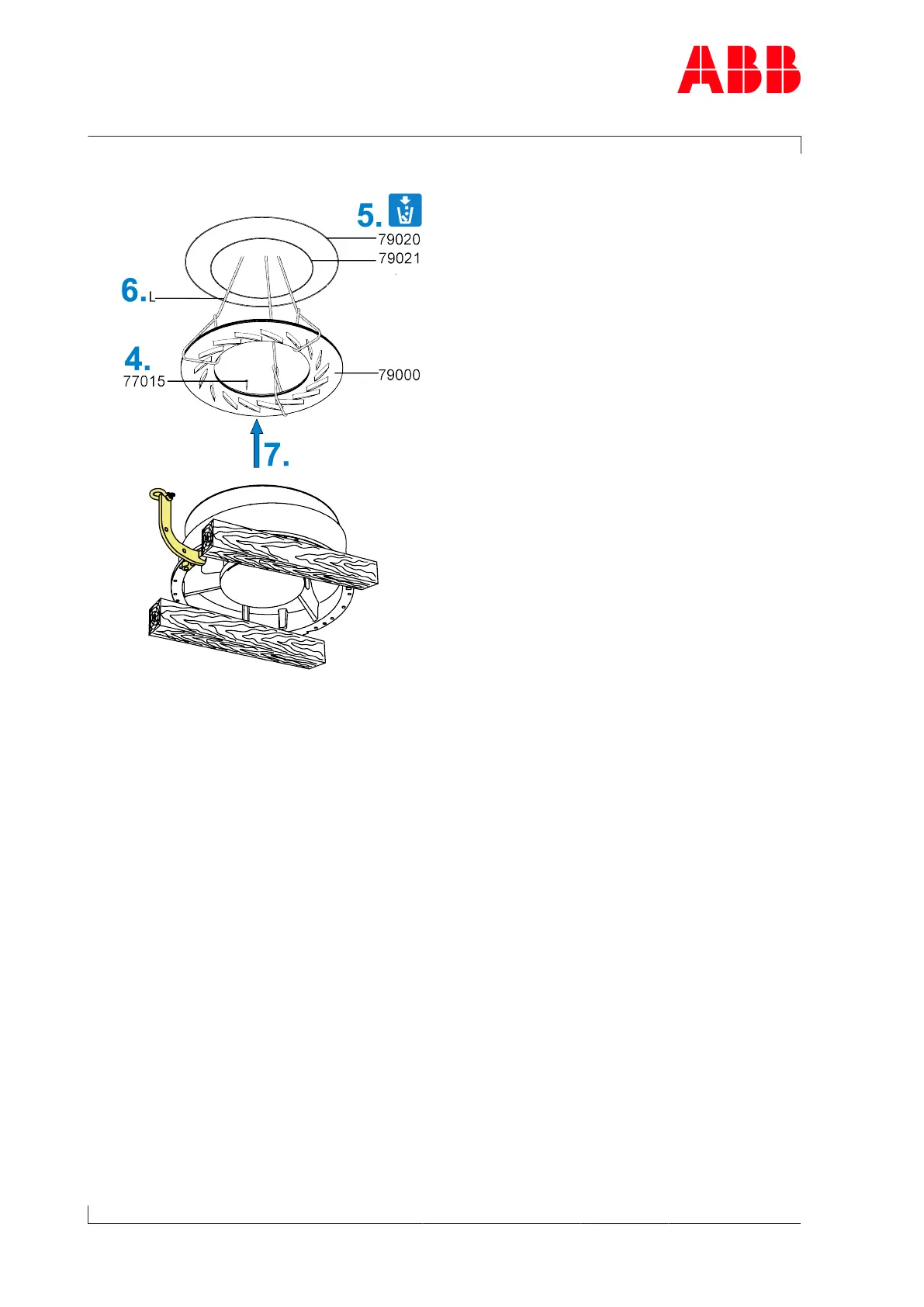

Fig.36: Dismantling the diffuser
4.
Loosen and remove screws(77015).
5.
Remove O-rings(79020, 79021).
6.
Attach lifting gear (L) to the diffuser(79000).
7.
Remove and put down diffuser.
Page 64 / 110
