6.3 Changing the filter strip on the filter silencer
casing
This chapter applies only to turbochargers with filter silencer casing. The filter ring (81265) is
replaced with the filter silencer installed.

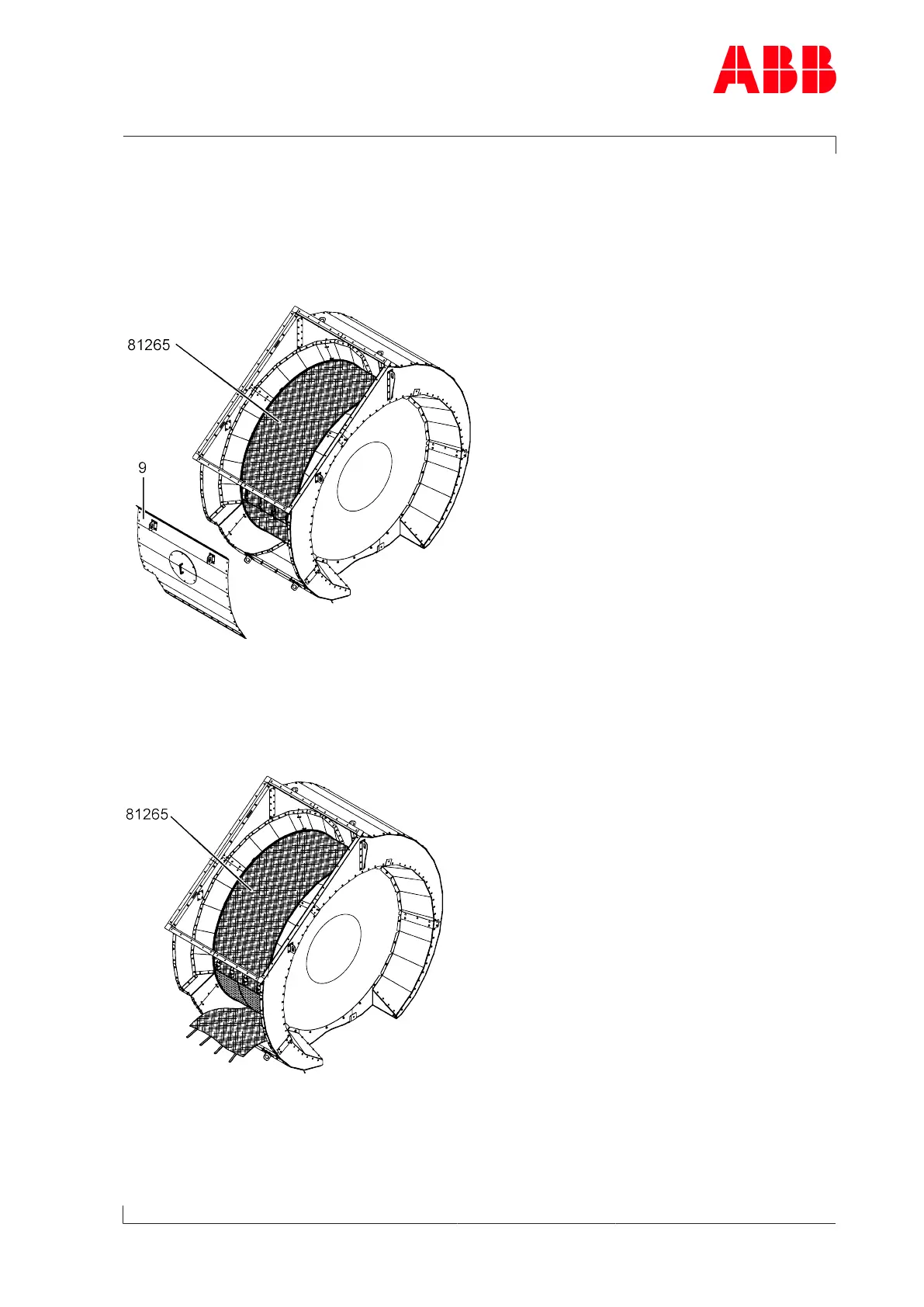

Fig.13: Dismantling filter ring circumferential part
u Dismantle circumferential part (9).
Fig.14: Opening filter ring lock
u Open the lock of the filter ring (81265).
