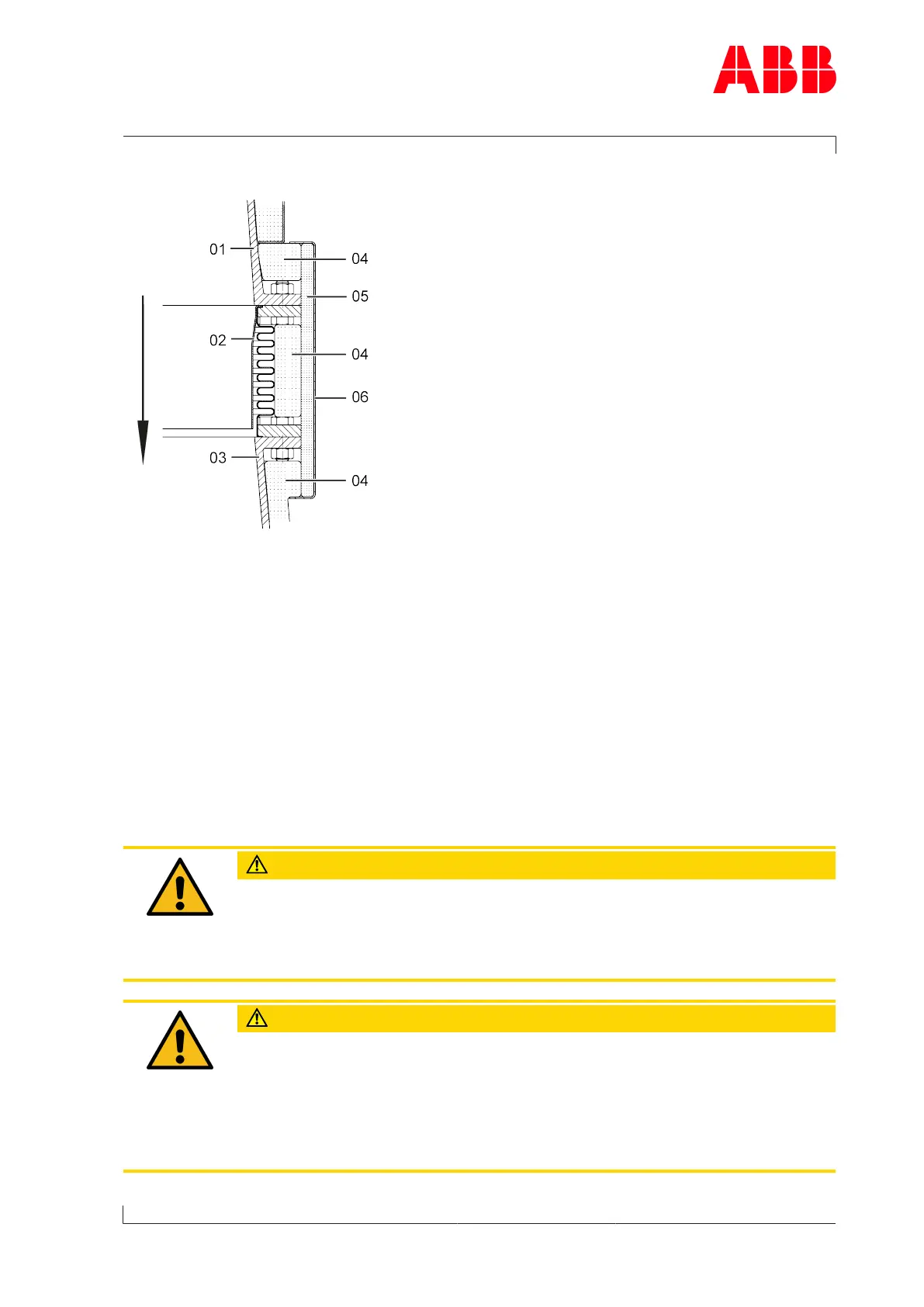

Suggestion for noise insulation, bellows
Fig.11: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
5.2 Service work
Service work includes visual controls, monitoring, measuring and inspection as well as func-
tional checks. Service work enables the detection and rectification of changes to the tur-
bocharger and ensures full operability of the turbocharger.
CAUTION
Service intervals
Any service work on the turbocharger that is omitted or performed too late
can cause excessive contamination, wear and operating failures.
u Carry out the service work at the specified time intervals.
CAUTION
Shortened service intervals
Exceptional stresses such as several starts/stops per day, harsh environ-
mental conditions, poor fuel quality or high system vibrations can lead to
untimely machine damage even if the prescribed service intervals are ob-
served.
u Agree on a shortened service interval with ABB Turbo Systems.
