ABB XAC25354 - Table 61: Spare Parts - Sealing Air Supply for Flexible Cut-Out

Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

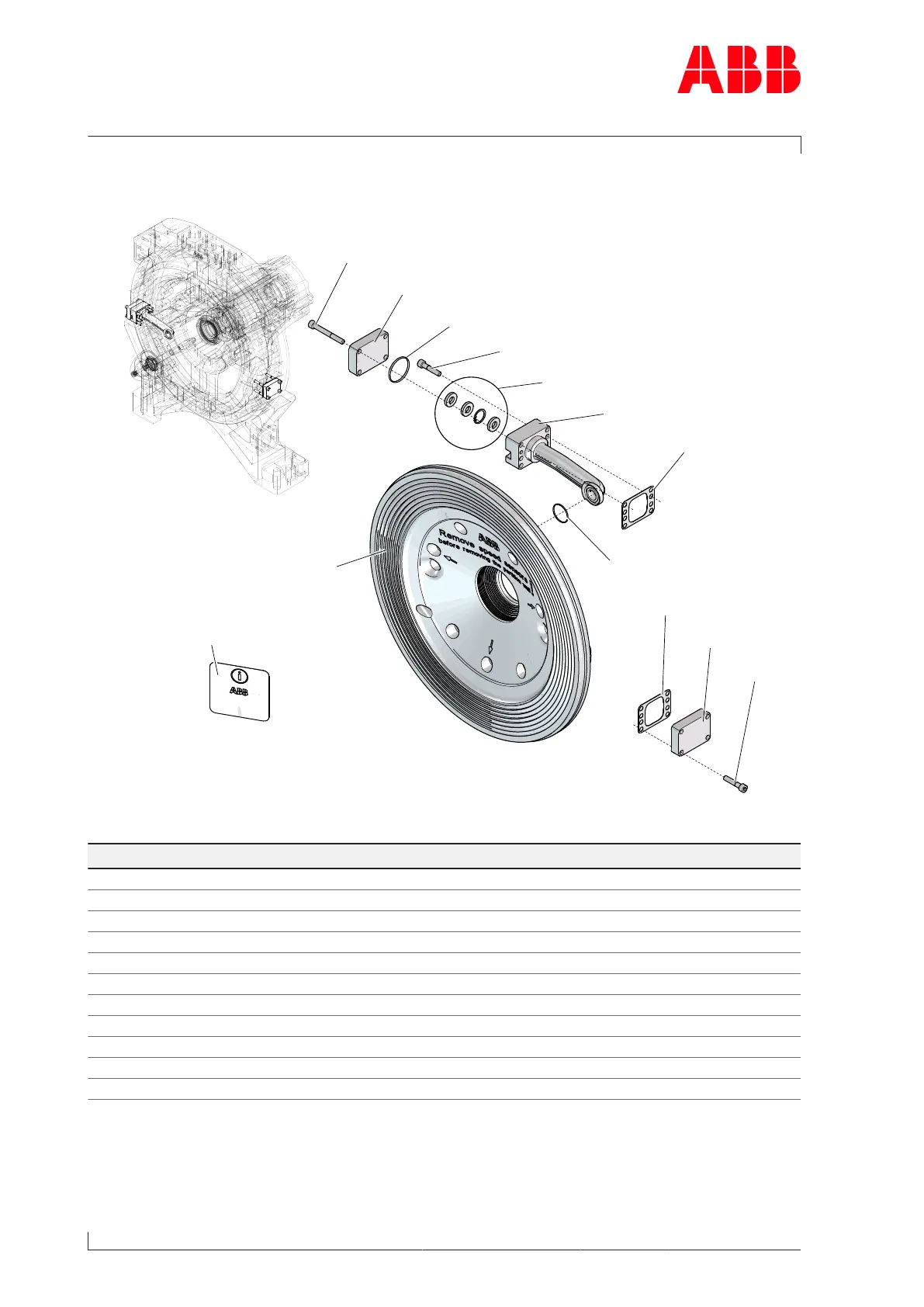

Sealing air supply for flexible cut-out
42559**
42552
42554* **
42557
97088* **
42550 **
42553* **
42555* **
42300 **
42560
42553* **
42552
42556
HZTL443339 Mod. C* = Available within the spare part set
** = Upgrade kit sealing air supply
Part no. Designation
42300 ** Partition wall
42550 ** Sealing air pipe
42552 Cover
42553* ** Flat gasket
42554* ** O-ring
42555* ** O-ring
42556 Socket screw
42557 Socket screw
42559** Socket screw
42560 Plate sealing air
97088* ** Orifice kit
Table61: Spare parts – Sealing air supply for flexible cut-out
