ABB XAC25354 - Dismantling the Nozzle Ring (≤ A175-L); Fig. 44: Dismantling the Nozzle Ring (A175-L and Smaller)

Operation Manual / A100-L
9 Disassembly and assembly / 9.11 Dismantling the nozzle ring (≤ A175-
L)
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.11 Dismantling the nozzle ring (
≤
A175-L)

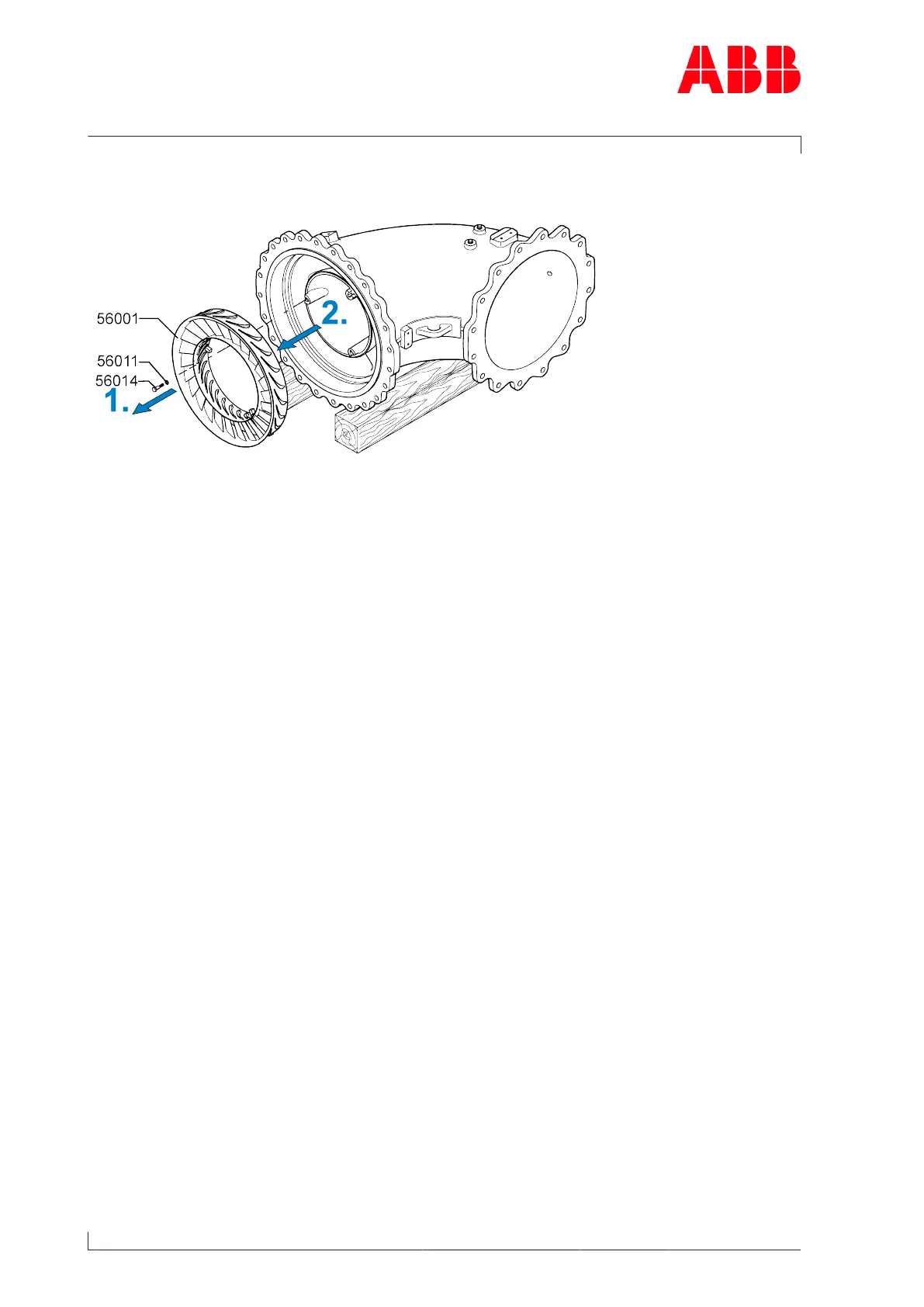

Fig.44: Dismantling the nozzle ring (A175-L and smaller)
1. Loosen screws(56014) and remove with washers(56011).
2. Remove and put down nozzle ring(56001).
