ABB XAC25354 - Fig. 40: Dismantling the Diffuser

Operation Manual / A100-L
9 Disassembly and assembly / 9.7 Dismantling wall insert and diffuser
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

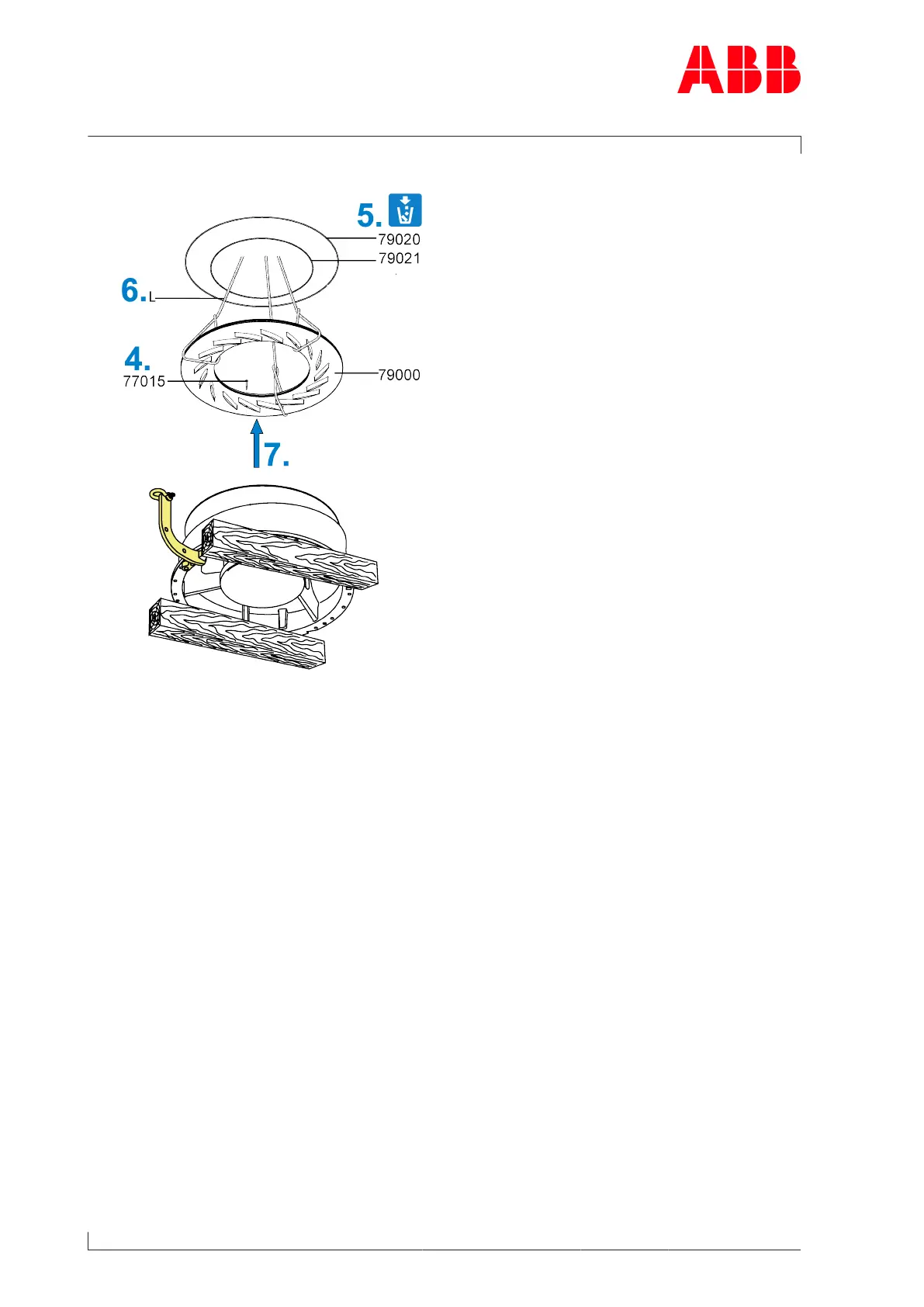

Fig.40: Dismantling the diffuser
4. Loosen and remove screws(77015).
5. Remove O-rings(79020, 79021).
6. Attach lifting gear (L) to the diffuser(79000).
7. Remove and put down diffuser.
