3.3 Installing the turbocharger
3.3.1 Placing the turbocharger on the bracket

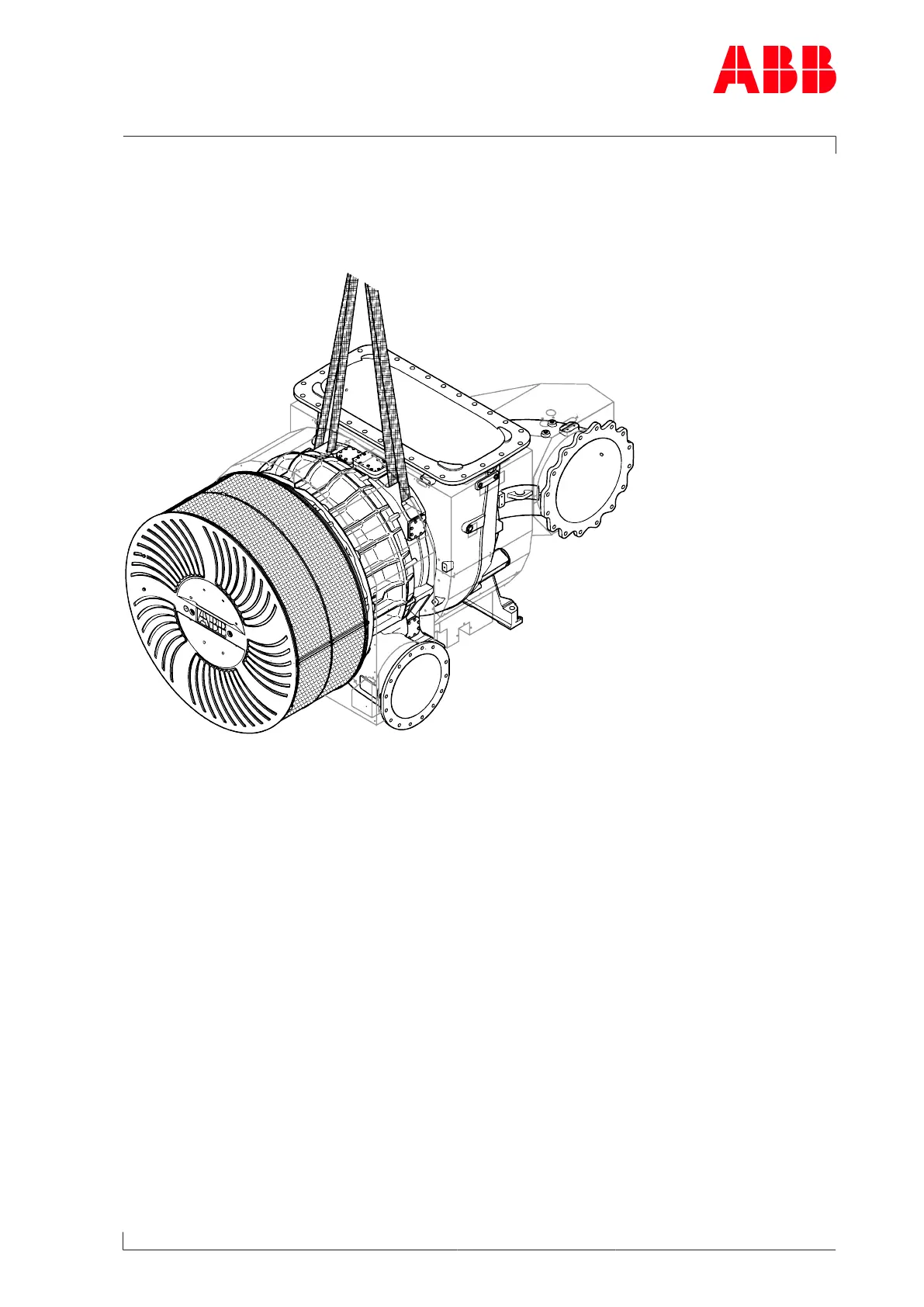

Fig.8: Placing the turbocharger
u Remove covers from the oil connections.
u Align turbocharger and place on engine bracket.
u Tighten the fixing screws (Steps for fastening the turbocharger) while only slightly
loosening the lifting gear.
u Remove lifting gear from turbocharger.
u Connect cable to speed sensor.
u Connect all gas, air and oil pipes.
See also
2 Steps for fastening the turbocharger [}28]
