Operation Manual / A100-L
9 Disassembly and assembly / 9.9 Dismantling the insulation (≤ A175-L)
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.9 Dismantling the insulation (
≤
A175-L)
NOTICE
Dry cleaning
The dry cleaning does not have to be removed to dismantle the insulation.

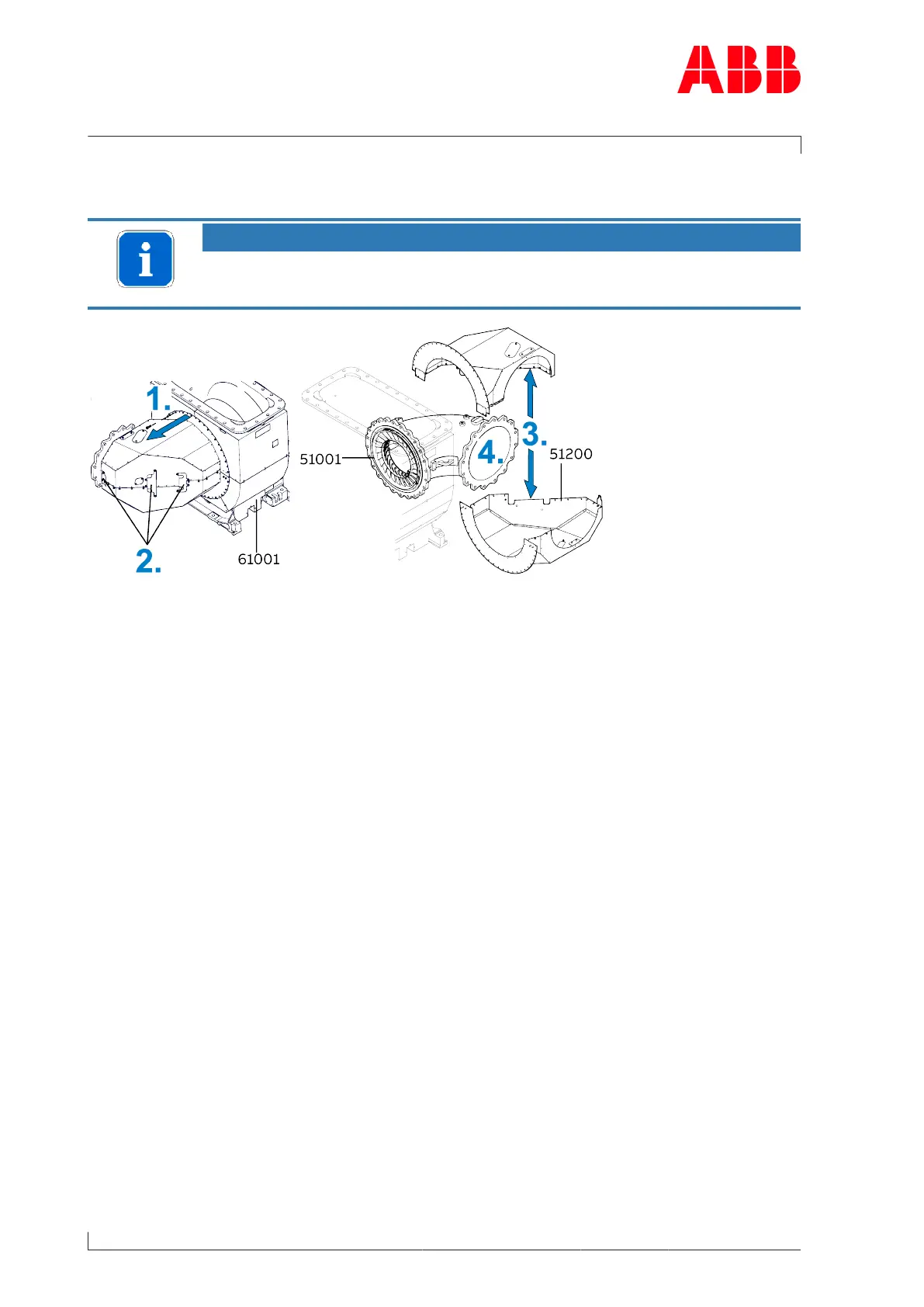

Fig.42: Removing the insulation (A175-L and smaller).
1. Loosen and remove screws of insulation jackets(51200) from gas outlet casing(61001).
2. Loosen and remove all connecting plates of insulation jackets.
3. Remove insulation jackets.
4. Detach flange connection between gas inlet casing (51001) and bellows.
Page 84 / 141
