ABB XAC25354 - Fig. 7: Fitting the Lifting Gear

Operation Manual / A100-L
3 Removal and installation / 3.2 Removing the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021

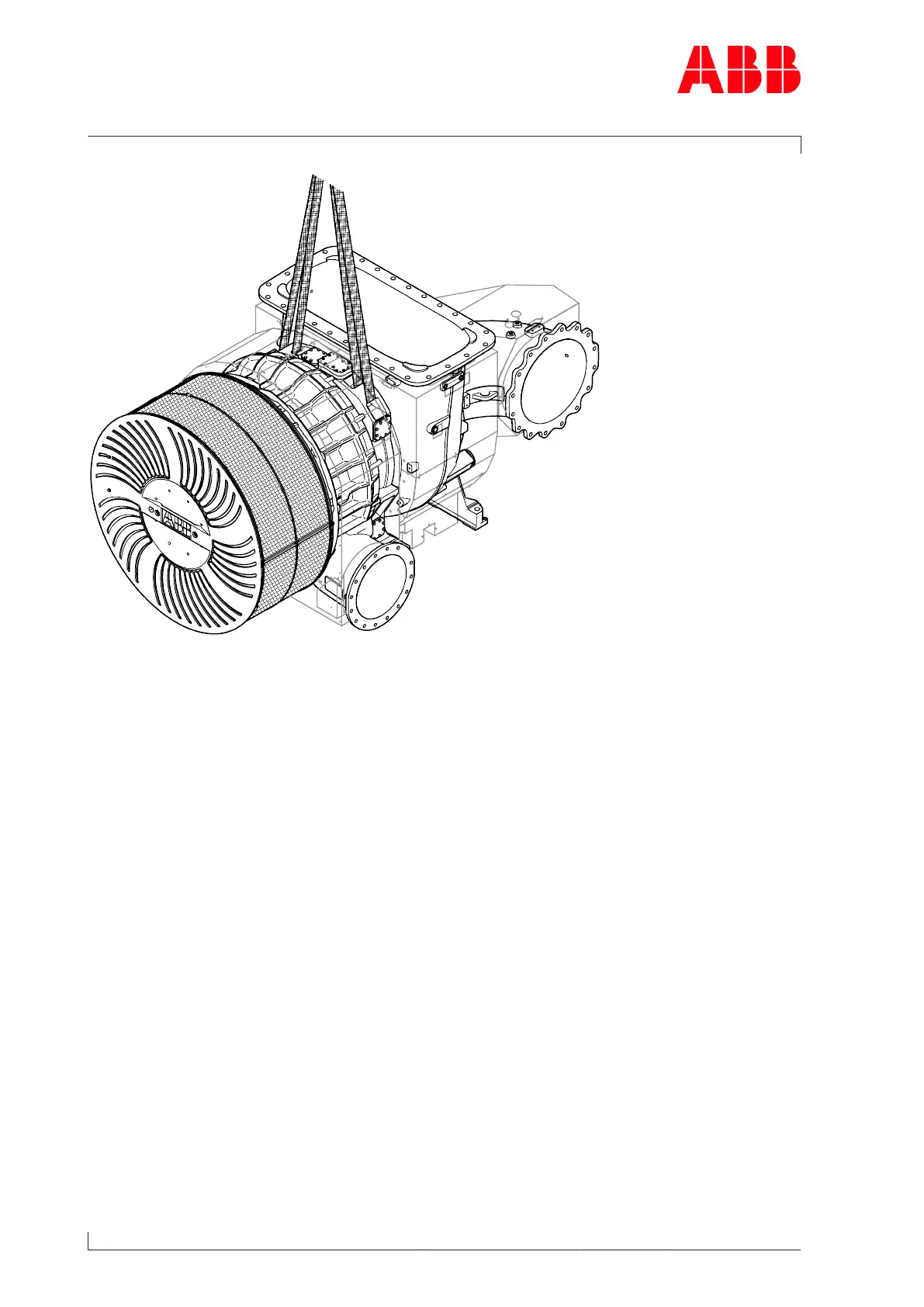

Fig.7: Fitting the lifting gear
u Loosen fixing screws on compressor-end and turbine-end foot.
u Lift turbocharger from engine and put down in a suitable location.
u Cover oil connections.
