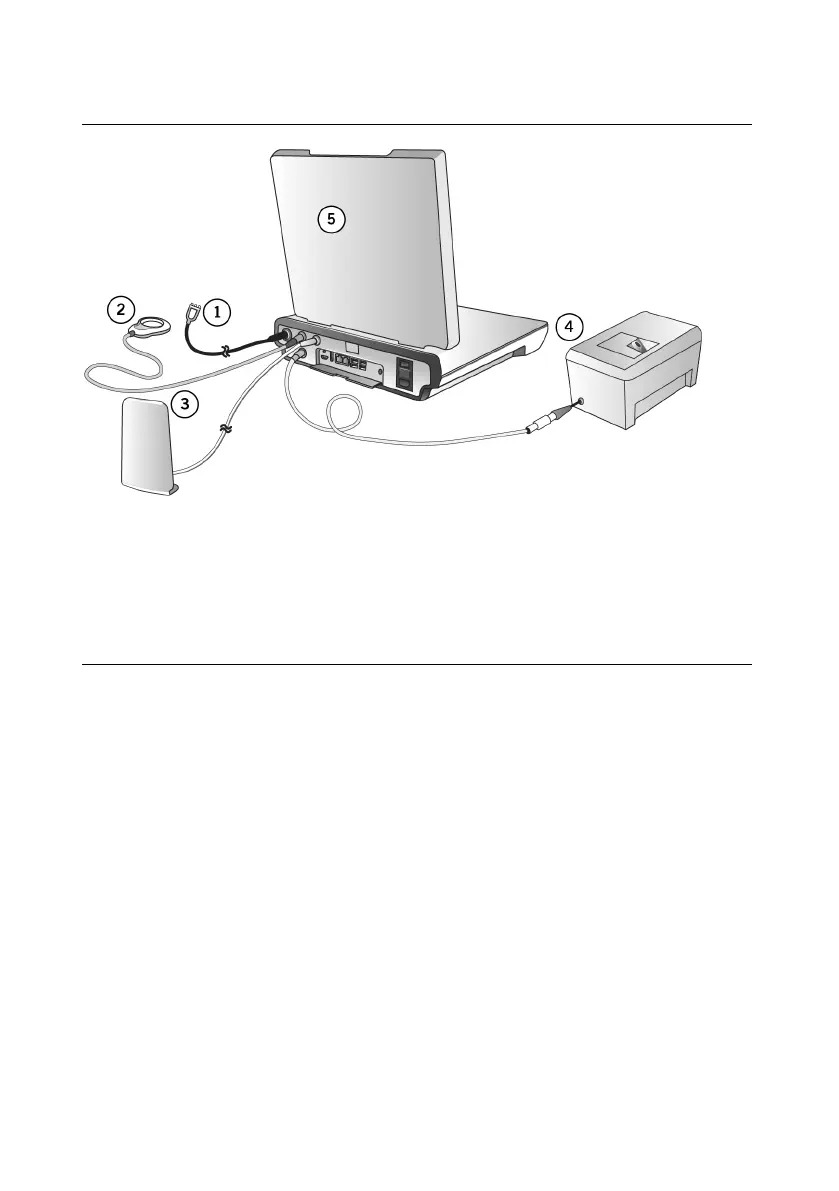

Figure 2. Connections between the Merlin™ 2 PCS, and the Merlin Antenna, Telemetry Wand,
Merlin PSA, and ECG Cables
1. ECG Cable connected to the ECG input port. See Merlin 2 PCS Setup (page 7).
2. Inductive Telemetry Wand connected to the telemetry wand inductive port. See
Merlin 2 PCS Setup (page 7).
3. Merlin Antenna connected to the RF telemetry port. See RF Communication Setup
(page 10).
4. Merlin PSA connected to the PSA port. See Merlin 2 PCS Setup (page 7).
5. Merlin 2 PCS
