ABI Attachments TR3-E Series - Operation Guide; 3 Point Connection

If tool is closer than 9”, adjust Toplink to top hole on tractor
and or add a “quick attach” hitch. If using a "quick attach"
style hitch, use bushings (kit P/N 10-90285) supplied with
your machine to prevent the tool from disconnecting
unexpectedly.
If the TR3-E is connected to the bottom holes, be sure to
connect the top link in the bottom hole on the mast as well.
Likewise, if the lower arms of the tractor are connected to
the TR3 in the top hole, connect the top link using the top
hole as well. The top hole is the suggested hole for operating

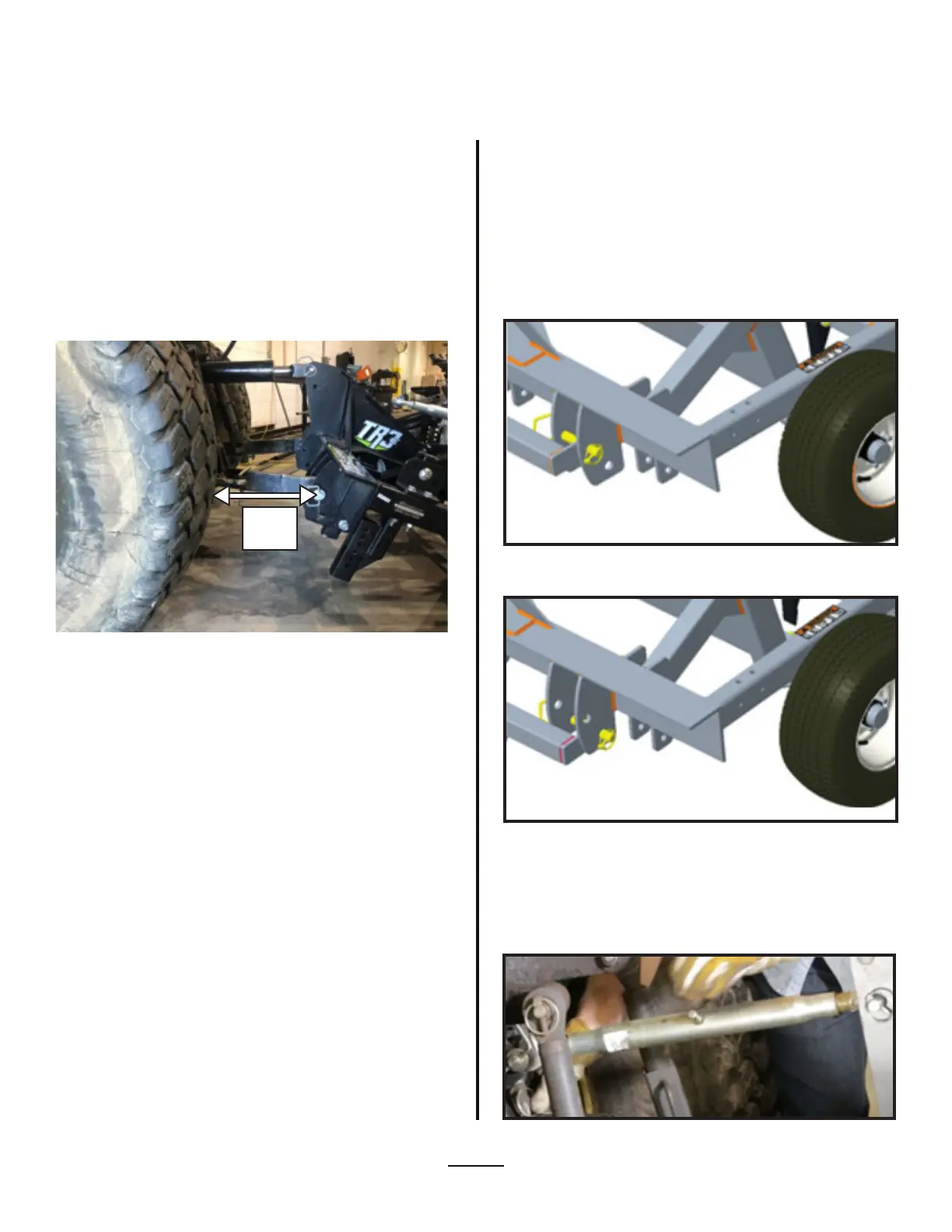

your TR3-E (see Figure 7). If the unit is regularly trailered or
the tractor has limited li height, the lower holes will give
added clearance (see Figure 8).
CAUTION: Ensure you have at least 9 inches between the
rear tire and the end of the lower 3-point arm.
Visit: www.abisupport.com
10
Figure 7.
Figure 8.
Ensure Lower arms are stabilized to prevent excessive side
movement.
Slowly back up the tractor to the TR3-E while using 3-point
hydraulic control to align hitch holes in lower 3-point arms
with hitch pins on the implement.
Secure lower arms to the implement using the hitch pins
provided.
Attach the tractor to the lower arms. There are two
connecting holes on the TR3-E for the bottom arms of the
tractor to attach to.
•
•
•
•
3 Point Connection
Each TR3-E is shipped with a complimentary 20 inch top
link. Some tractors will require a dierent top link, such as
what came with it from the factory, or that are available for
purchase at a local dealer.
Operation Guide
9"
