Abicor Binzel ABICOOLER 2000 advanced - Startup and Commissioning

2000 advanced/2000 6 Startup and Commissioning
NOTICE
• Contamination of the coolant may cause damage to the cooling unit.
• Use a coolant filter (included) to avoid damage to the cooling unit.
 6.3 Before Initial Startup and Commissioning on page EN-13
• ABICOR BINZEL is not responsible for warranty for various damages caused by using the coolant circulation
without a coolant filter.
1 Centrifugal pump
2 Coolant tank
3 Radiator
4 Flow monitor
5 Coolant circulation outlet
(blue)
6 Coolant circulation inlet
(red)
7 Flow monitor
8 Exhaust pipe(transparent)
9 ∅6 Compressed air
connector
10 Vacuum generator

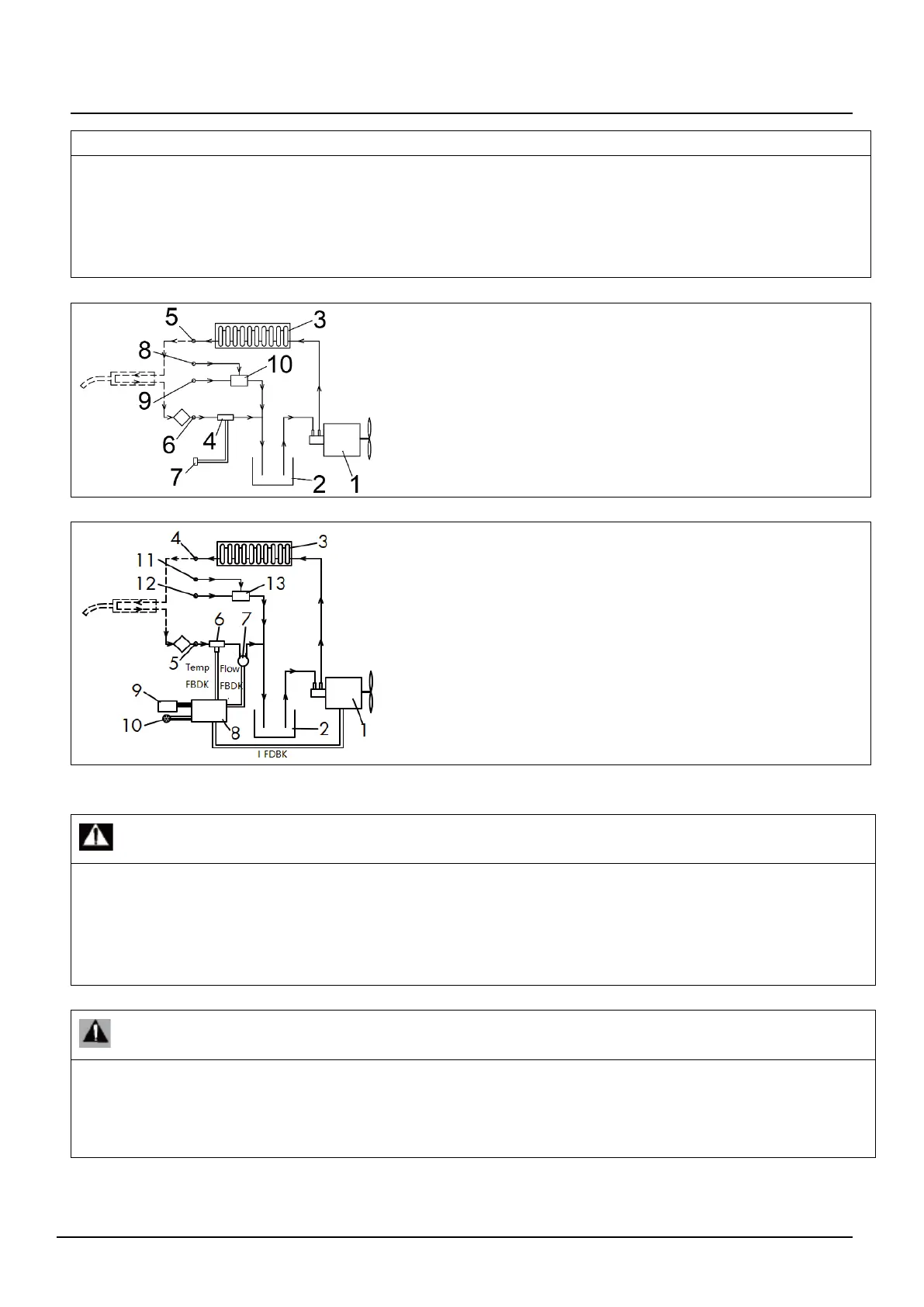

Figure 7 Overview of the 2000 coolant recirculatior loop
1 Centrifugal pump
2 Coolant tank
3 Radiator
4 Coolant circulation outlet
(blue)
5 Coolant circulation
inlet (red)
8 Central controller
9 Display
10 Communication
connector
11 Exhaust pipe
(transparent)
12 ∅6 Compressed air
connector
13 Vacuum generator
Figure 8 Overview of the 2000 advanced coolant recirculatior loop
6. Startup and commissioning
DANGER
Risk of injury due to unexpected start-up
The following instructions must be adhered to throughout the entire process of maintenance, servicing, assembly,
disassembly and repair work:
• Switch off the power source.
• Disconnect all electrical connections.
WARNING
Electric shock
Dangerous voltage due to defective cables.
• Check all live cables and connections for proper installation and damage.
• Replace any damaged, deformed or worn parts.
EN-11
6 Startup and Commissioning 2000 advanced/2000
