5 Functional description
The advanced/2000 cooling unit conveys and detects the cooling medium. All required components and
connections have been installed in the housing. A temperature and flow monitor is integrated into the cooling unit
by default. The cooling unit comes with a coolant filter, which must be installed on the cooling unit before use.
1 Coolant filling inlet 2 Coolant circulation outlet (blue) 3 Coolant circulation inlet (red)
4 Coolant discharging outlet neck 5 Level indicator 6 On/off switch
5 Communication signal connector 8 Display 9 ∅6 Compressed air connector

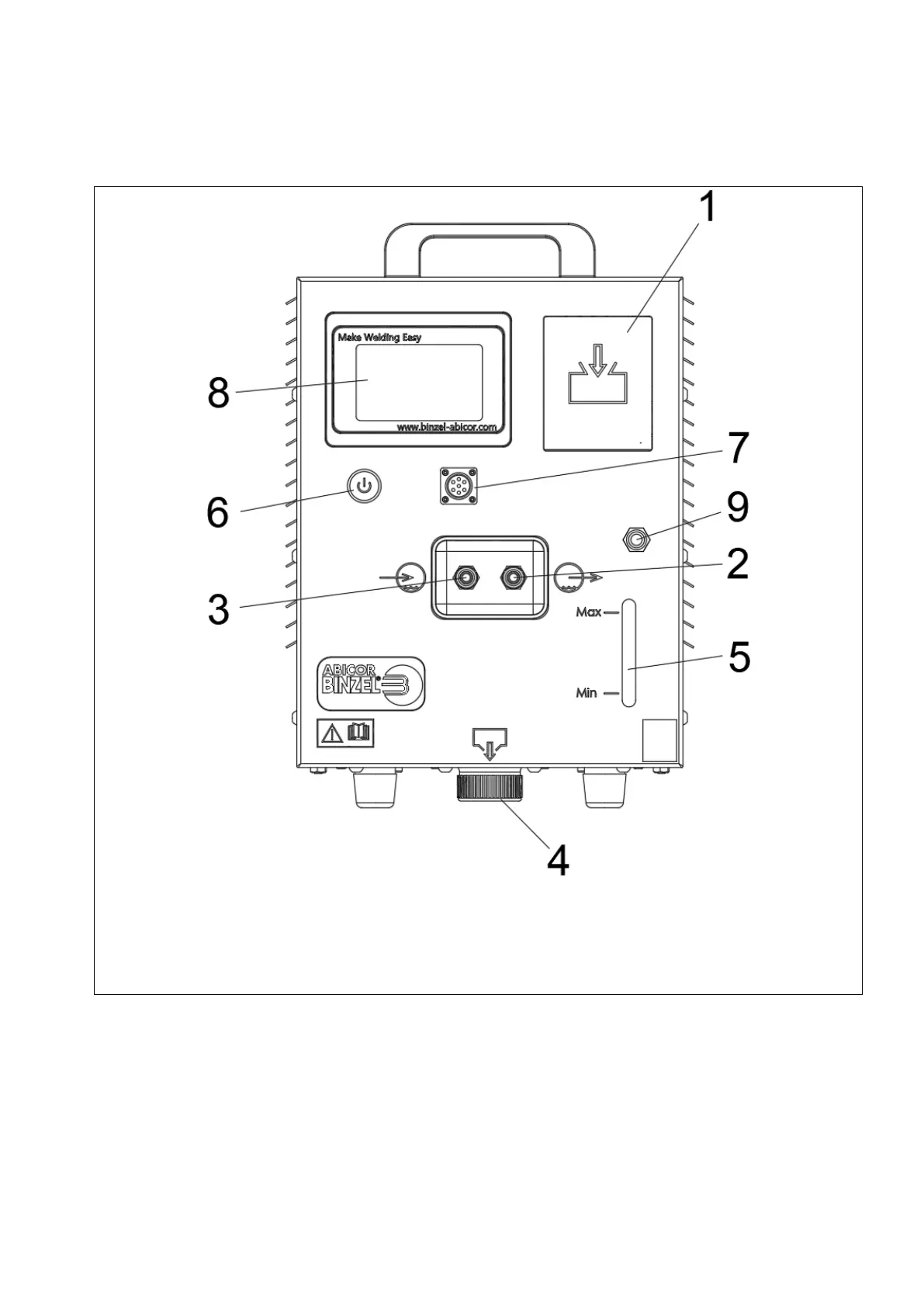

Figure 5 Components of the 2000 advanced coolant recirculator
