13.5 Description of default parameters (applicable to model 2000 advanced)
Function
Function description
Default setting
Pump self-start Whether the water pump runs immediately after pressing the On/Off
button
0 (0: Yes/1: No)
Output options
The signal output type when there is an alarm for abnormal water
flow, water temperature, or current,
0 (0: normally off/1:
normally on)
Shutdown options Whether the water pump stops running when an alarm signal is sent
out due to abnormal water flow, temperature, and current
0 (0: Yes/1: No)
External signals The water tank is controlled to start and stop through internal/external
signals
0 (0: internal/1:
external)
Water flow detection
time
After X seconds of water pump operation, the water tank begins to
monitor data
10 seconds
Water temperature
detection time
After X seconds of water pump operation, the water tank begins to
monitor data
10 seconds
Current detection time After X seconds of water pump operation, the water tank begins to
monitor data
10 seconds
Upper temperature
limit
If the temperature of the cooling water exceeds the set value, an alarm
will occur
60
℃
Lower flow limit If the flow rate of the cooling water is lower than the set value, an
alarm will occur
0.8 L/min
Table 11 ABICOOLER 2000 advanced function description
13.6 Description of aviation plug pins (applicable to model 2000 advanced)
Note: The maximum output signal supports DC24V/0.5A load

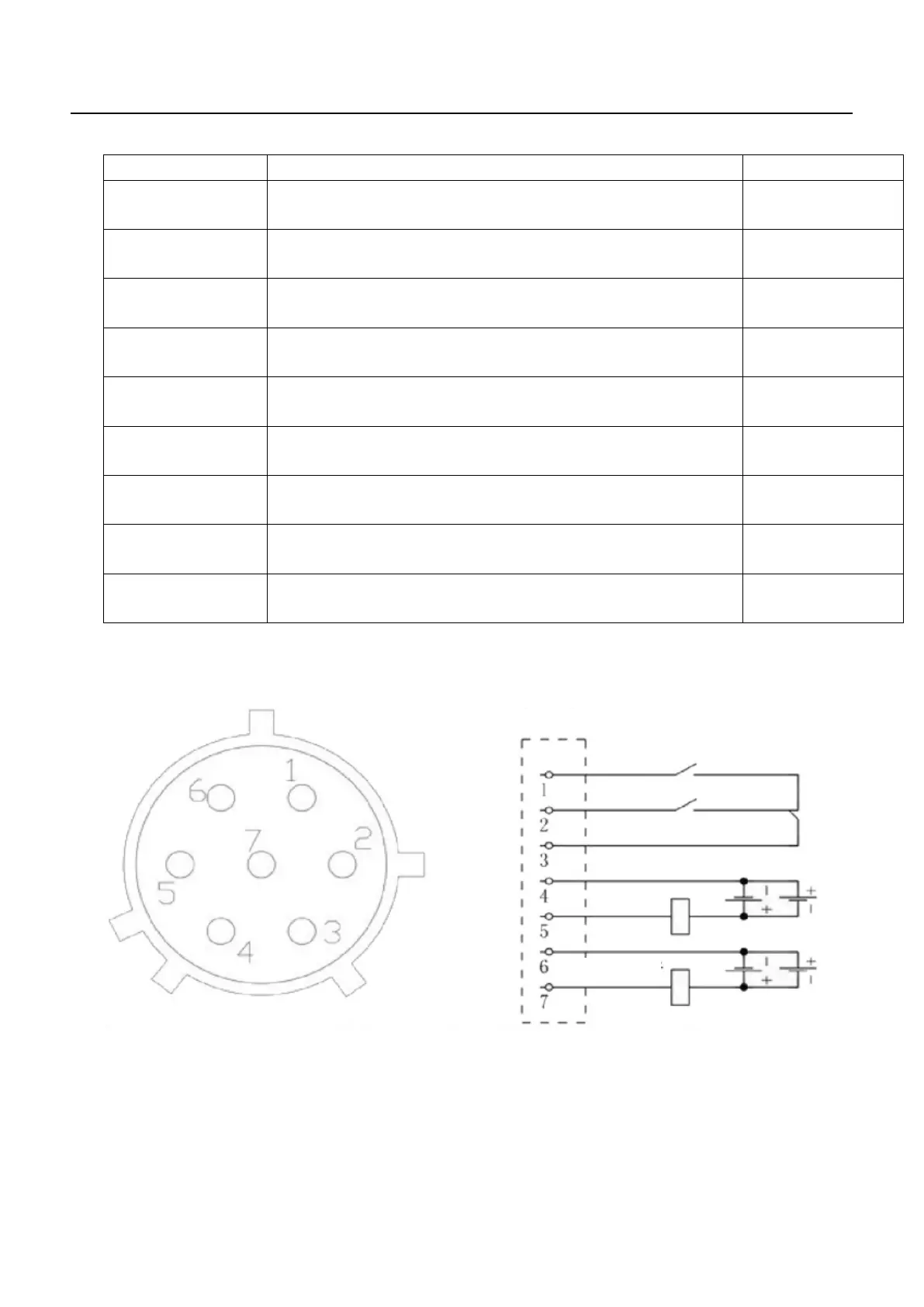

Figure 22 Description of aviation plug pins (applicable to model 2000 advanced)
EN - 28
White
Brown
Green
Yellow
Grey
Blue
Pink
Signal plug
Alarm
Pump operation
Standby
Startup
