Abit AS8 - Additional USB Port Headers; Additional IEEE1394 Port Headers (for AS8 and AS8-G)

2-12 Chapter 2

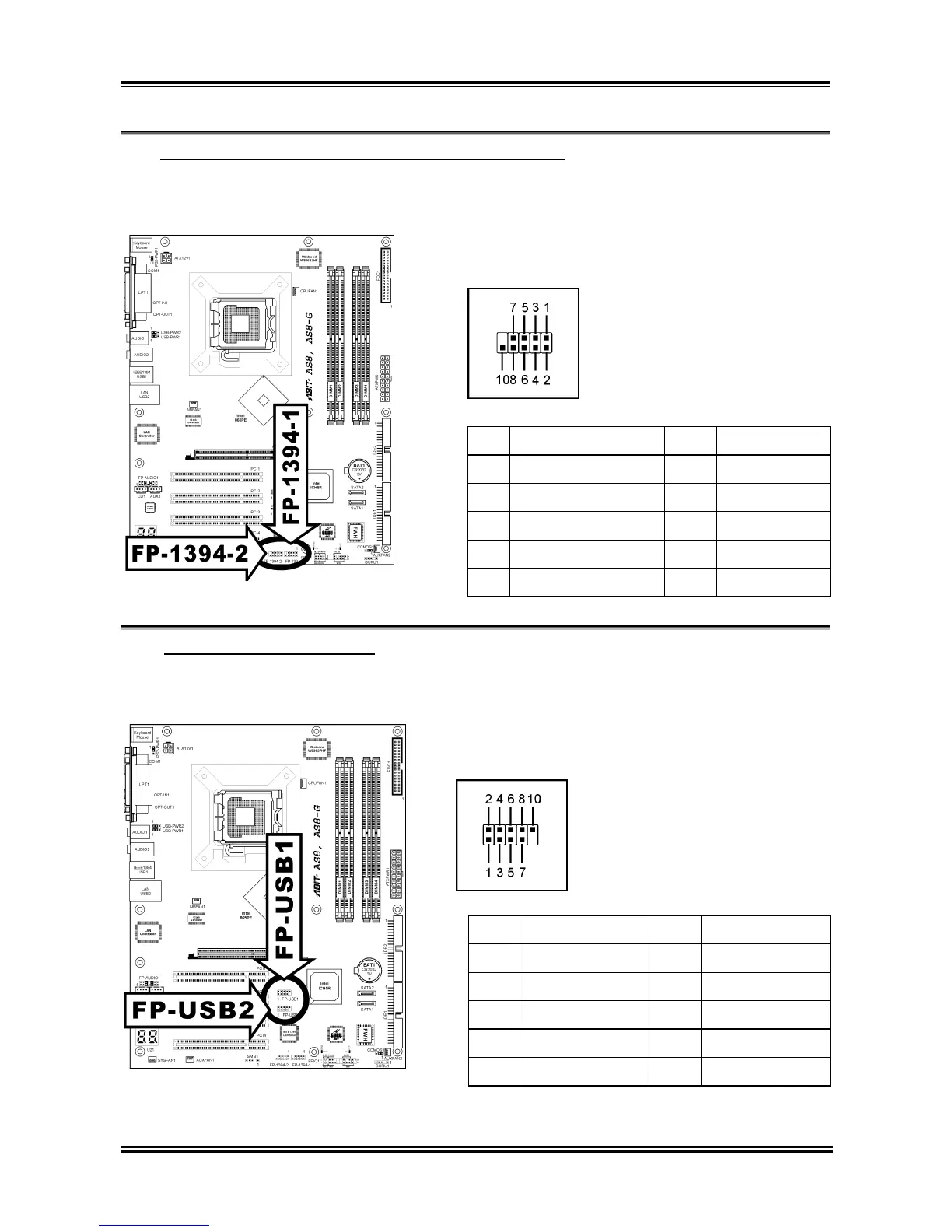

Additional IEEE1394 Port Headers (For AS8 and AS8-G) (7).
These headers each provide one additional IEEE1394 port connection through an extension cable and
bracket.
(8). Additional USB Port Headers
These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
AS8 Series
Pin Pin Assignment Pin Pin Assignment
1 TPA0 + 2 TPA0 -
3 GND 4 GND
5 TPB0 + 6 TPB0 -
7 +12V 8 +12V
9 NC 10 GND
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data0 - 4 Data1 -
5 Data0 + 6 Data1 +
7 Ground 8 Ground
9 NC 10 NC
