Abit AS8 - Serial ATA Connectors; Status Indicators

Hardware Setup 2-17

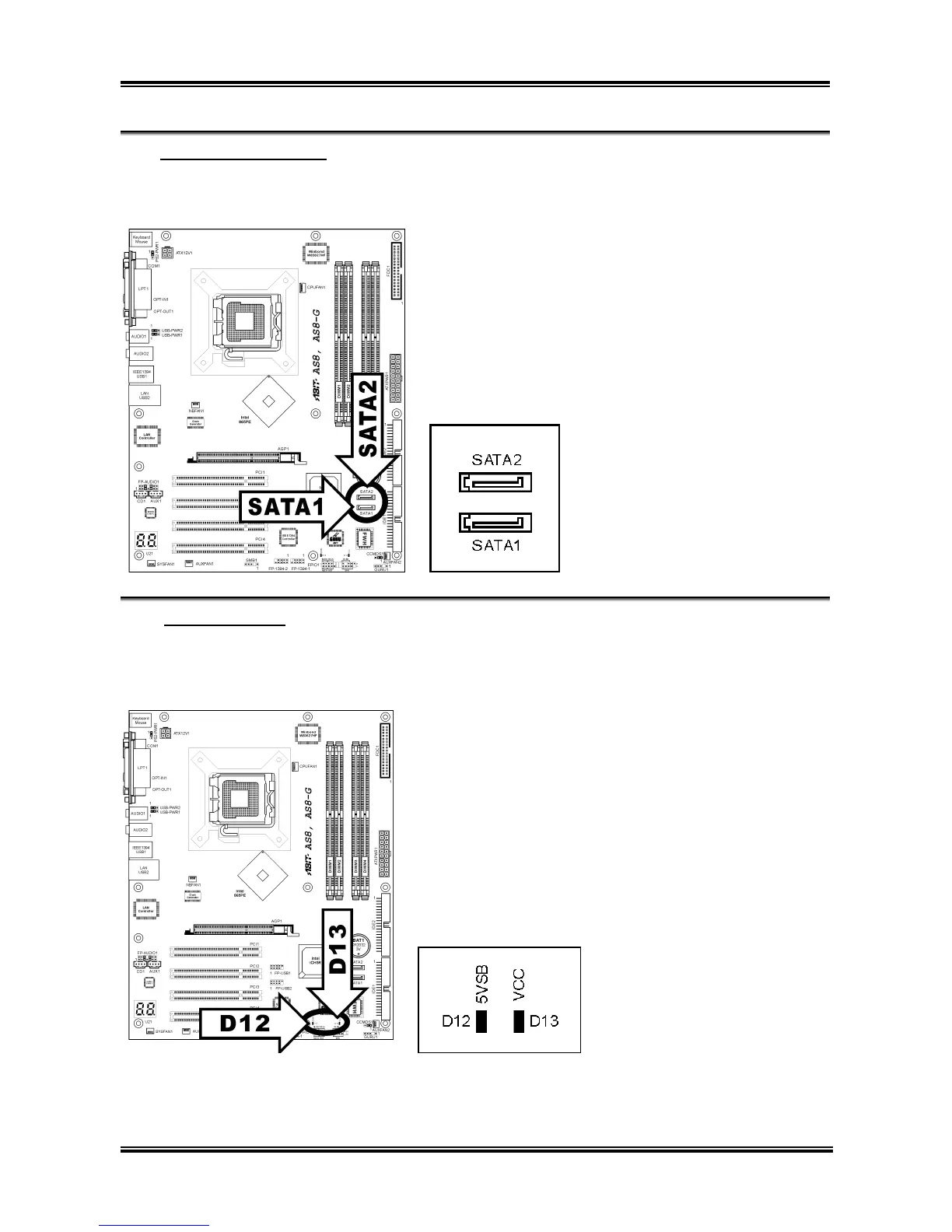

(14). Serial ATA Connectors
These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable.
(15). Status Indicators
• D12 (5VSB): This LED lights up when the power supply is connected with power source.
• D13 (VCC): This LED lights up when the system power is on.
User’s Manual
