12 I-45C/I-45CV

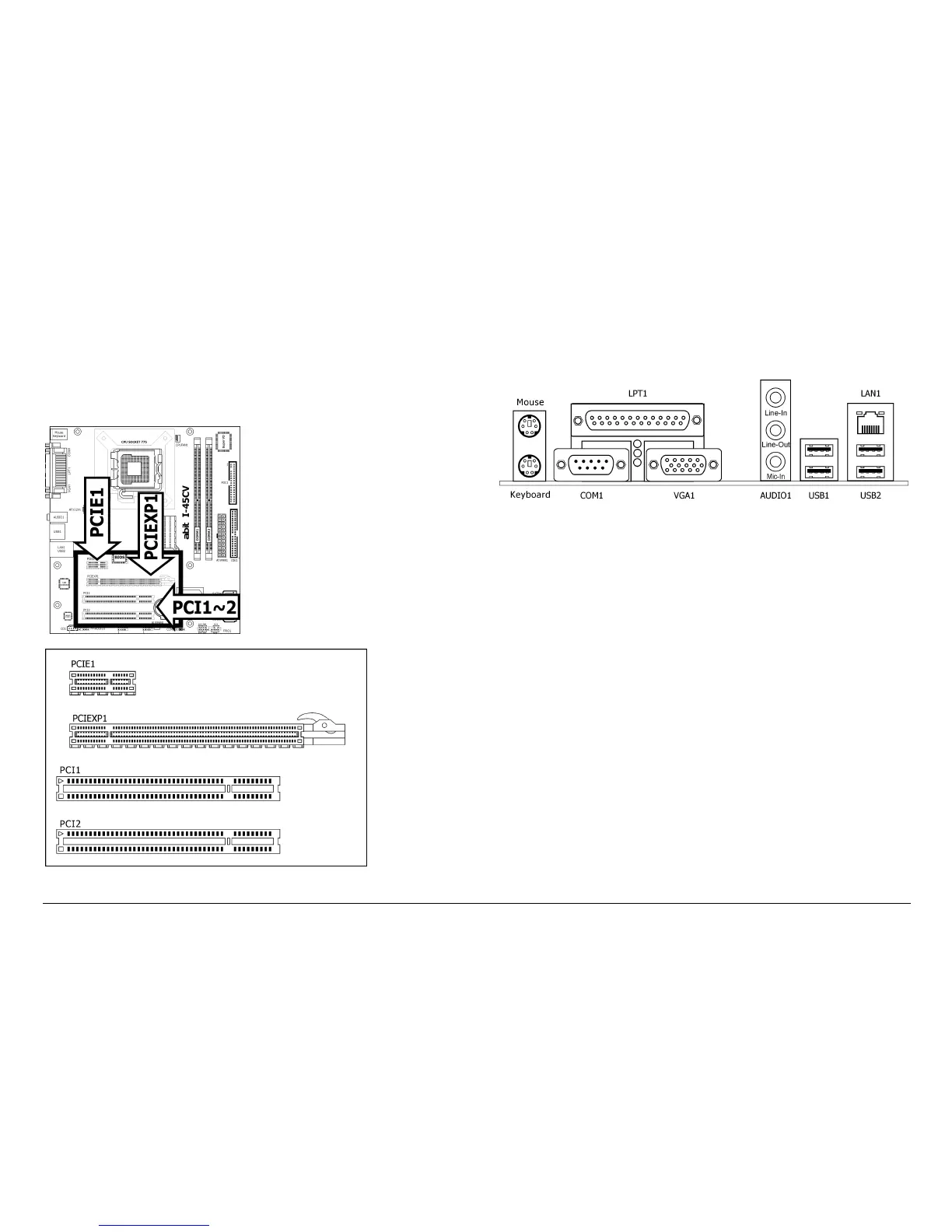

1.8 PCI and PCI Express X16, X1 Slots
Install PCI Express X16 graphics card into slot “PCIEXP1”.
Install PCI Express X1 cards into slot “PCIE1”.
Install PCI cards into slots “PCI1” and/or “PCI2”.
1.9 Connecting Rear Panel I/O Devices
The rear I/O part of this motherboard provides the following I/O ports:
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LPT1: Connects to printer or other devices that support this
communication protocol.
• COM1: Connects to external modem, mouse or other devices
that support this communication protocol.
• VGA1: Connects to monitor input.
• AUDIO1:
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel.
Mic-In: Connects to the plug from external microphone.
• USB1/USB2: Connects to USB devices such as scanner, digital
speakers, monitor, mouse, keyboard, hub, digital camera, joystick
etc.
• LAN1: Connects to Local Area Network.
