4 I-45C/I-45CV
or “CMOS checksum error” displays on monitor, this backup battery
is no longer functional and has to be renewed.
To renew the backup battery:
1. Power off the system and disconnect with AC power source.
2. Remove the exhausted battery.
3. Insert a new CR2032 or equivalent battery. Pay attention to its
polarity. The “+” side is its positive polarity.
4. Connect AC power source and power on the system.
5. Enter the BIOS setup menu. Reconfigure the setup parameters if
necessary.
CAUTION:
※
Danger of explosion may arise if the battery is incorrectly renewed.
※ Renew only with the same or equivalent type recommended by the
battery manufacturer.
※ Dispose of used batteries according to the battery manufacturer’s
instructions.

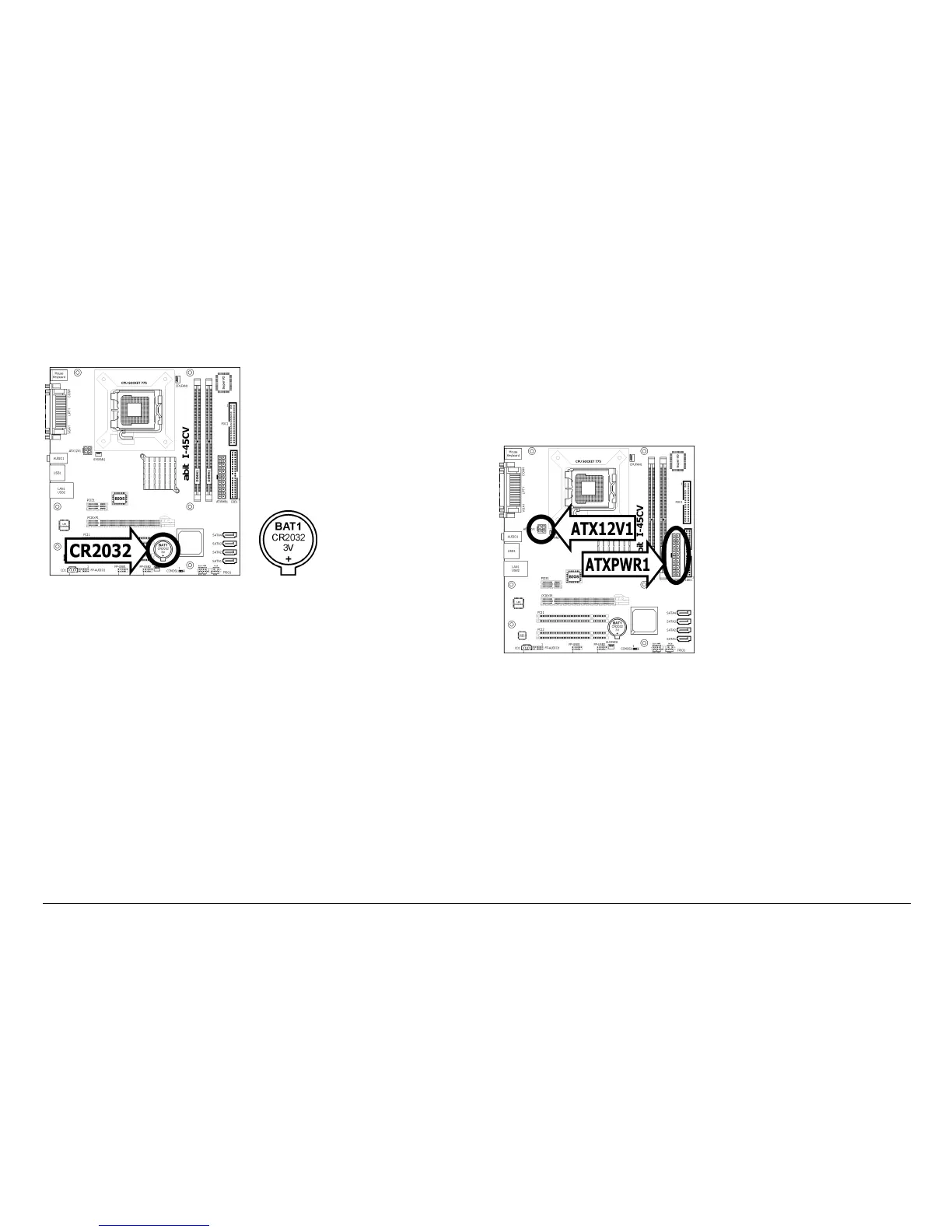

1.5 Connecting Chassis Components
1.5.1 ATX Power Connectors
These connectors provide the connection from an ATX power supply. As
the plugs from the power supply fit in only one orientation, find the
correct one and push firmly down into these connectors.
ATX 24-Pin Power Connector:
The power supply with 20-pin or 24-pin cables can both be connected
to this 24-pin connector. Connect from pin-1 for either type. However, a
20-pin power supply may cause the system unstable or even
unbootable for the sake of insufficient electricity. A minimum power of
300W or higher is recommended.
ATX 12V 4-Pin Power Connector:
This connector supplies power to CPU. The system will not start without
connecting power to this one.
