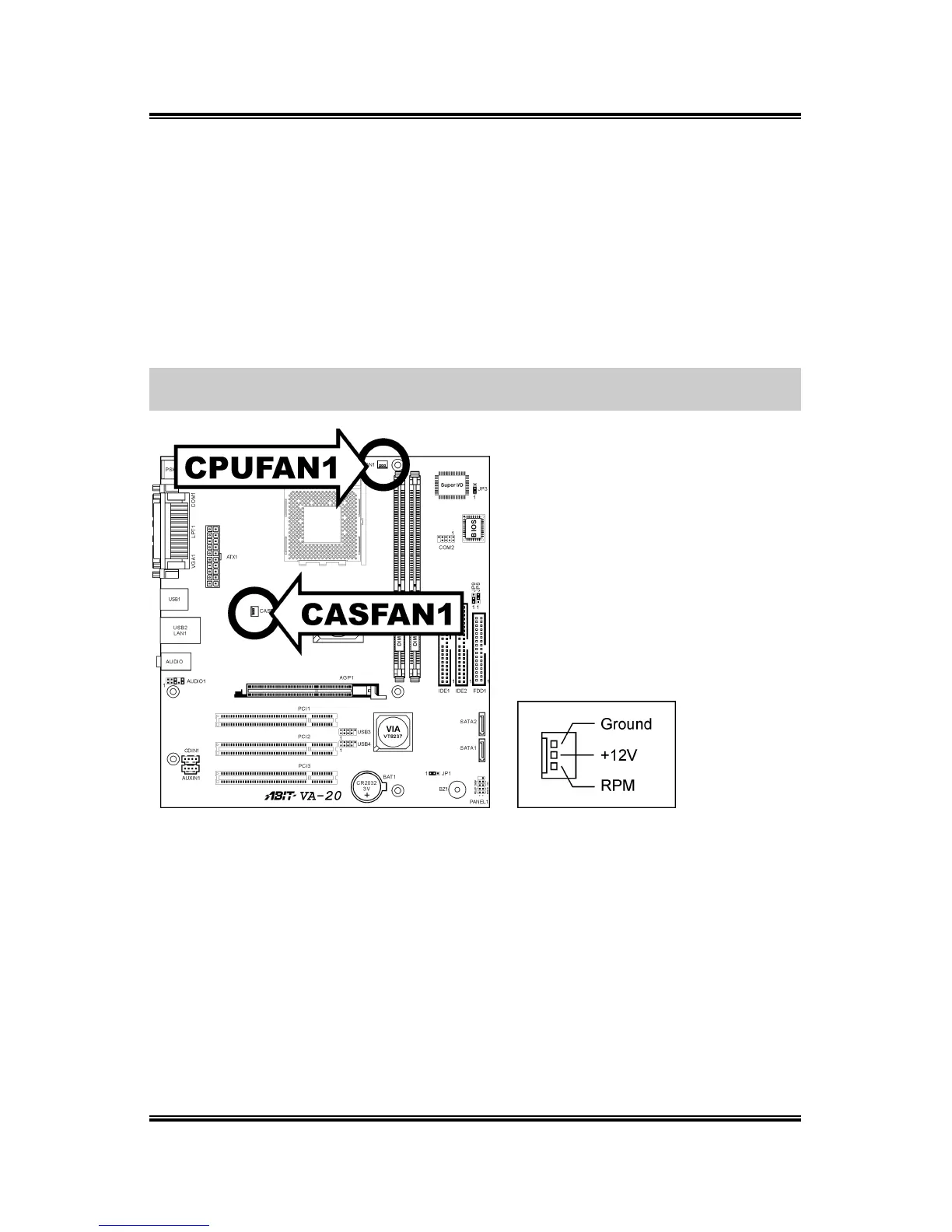

2.5.2. FAN Connectors (CPUFAN1, CASFAN1)
These connectors each provide power to the cooling fans installed in your system.
The CPU must be kept cool by using a powerful fan with heatsink. The system is
capable of monitoring the speed of the CPU fan.
• CPUFAN1: Power connector for CPU cooling fan
• CASFAN1: Power connector for chassis cooling fan
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on
these connectors.
