2-20 Chapter 2

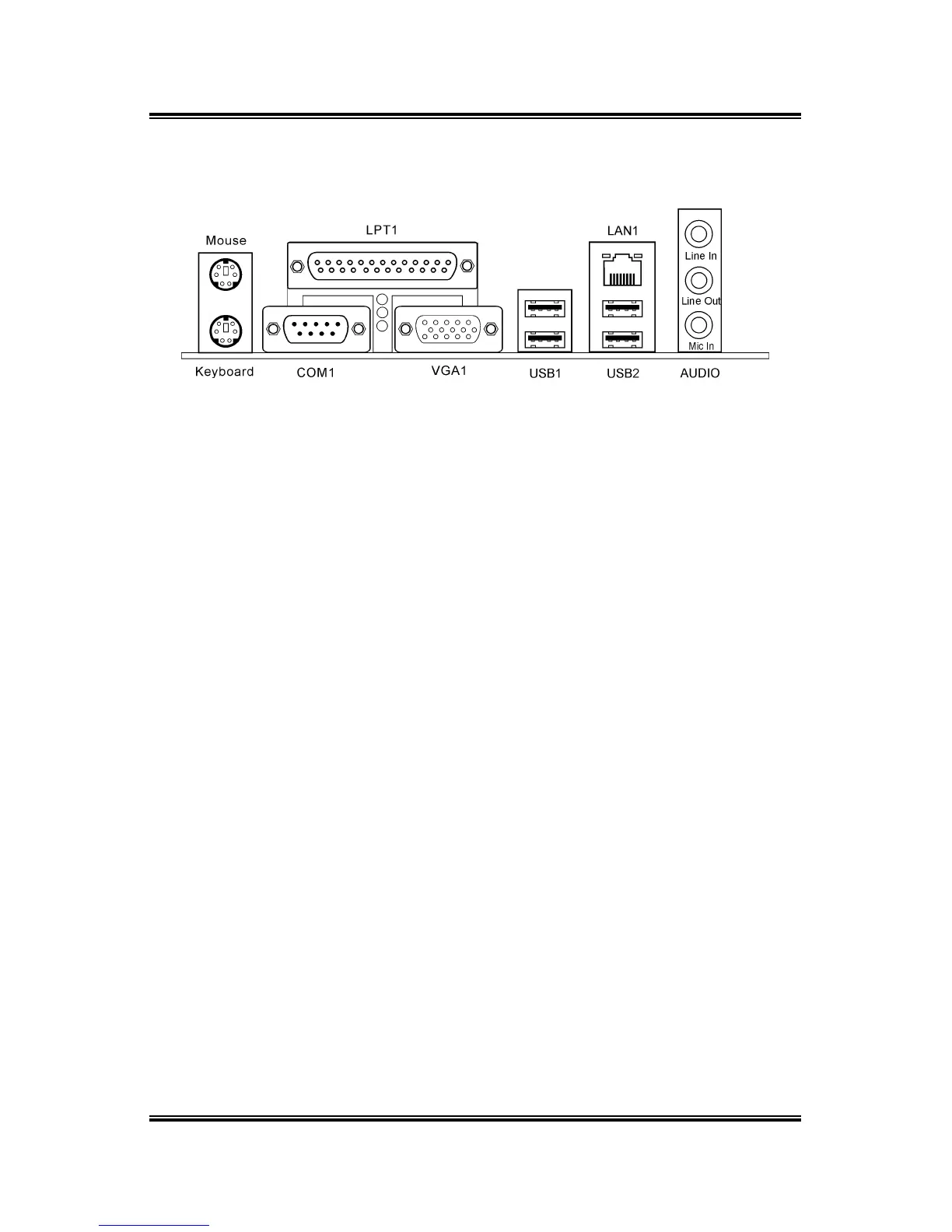

2.5.15. External I/O Panel
• Mouse: PS/2 mouse connector.
• Keyboard: PS/2 keyboard connector.
• LPT1: Parallel port connector.
• COM1: Serial port connector.
• VGA1: Monitor signal connector.
• USB1/USB2: USB 2.0 connectors.
• LAN1:10/100Mbps LAN connectors.
• AUDIO:
Mic In: Connects to the plug from external microphone.
Line In: Connects to the line out from external audio sources.
Line Out: Connects to the front left and front right channel in the 5.1-channel
or regular 2-channel audio system.
VA-20
