2-10 Chapter 2

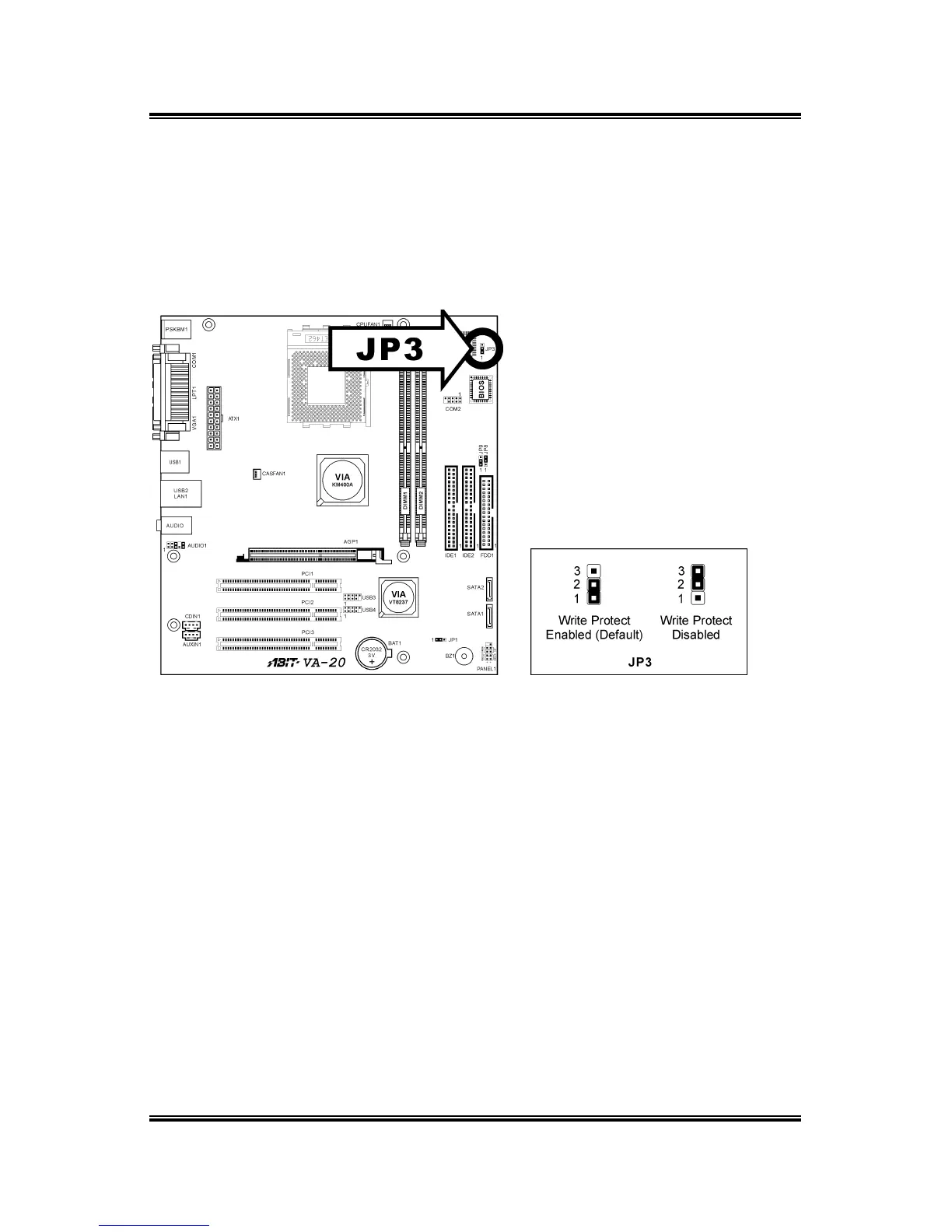

2.5.4. BIOS Write Protection Header (JP3)
This header uses a jumper cap to protect the BIOS contents from accidentally flashed.
• Pin 1-2 shorted (Default): Write Protect Enabled.
• Pin 2-3 shorted: Write Protect Disabled.
