ABL eMH1 WALLBOX - Connecting Type 1 Charging Cable

26
Before the charging procedure
During the charging procedure
After the charging procedure

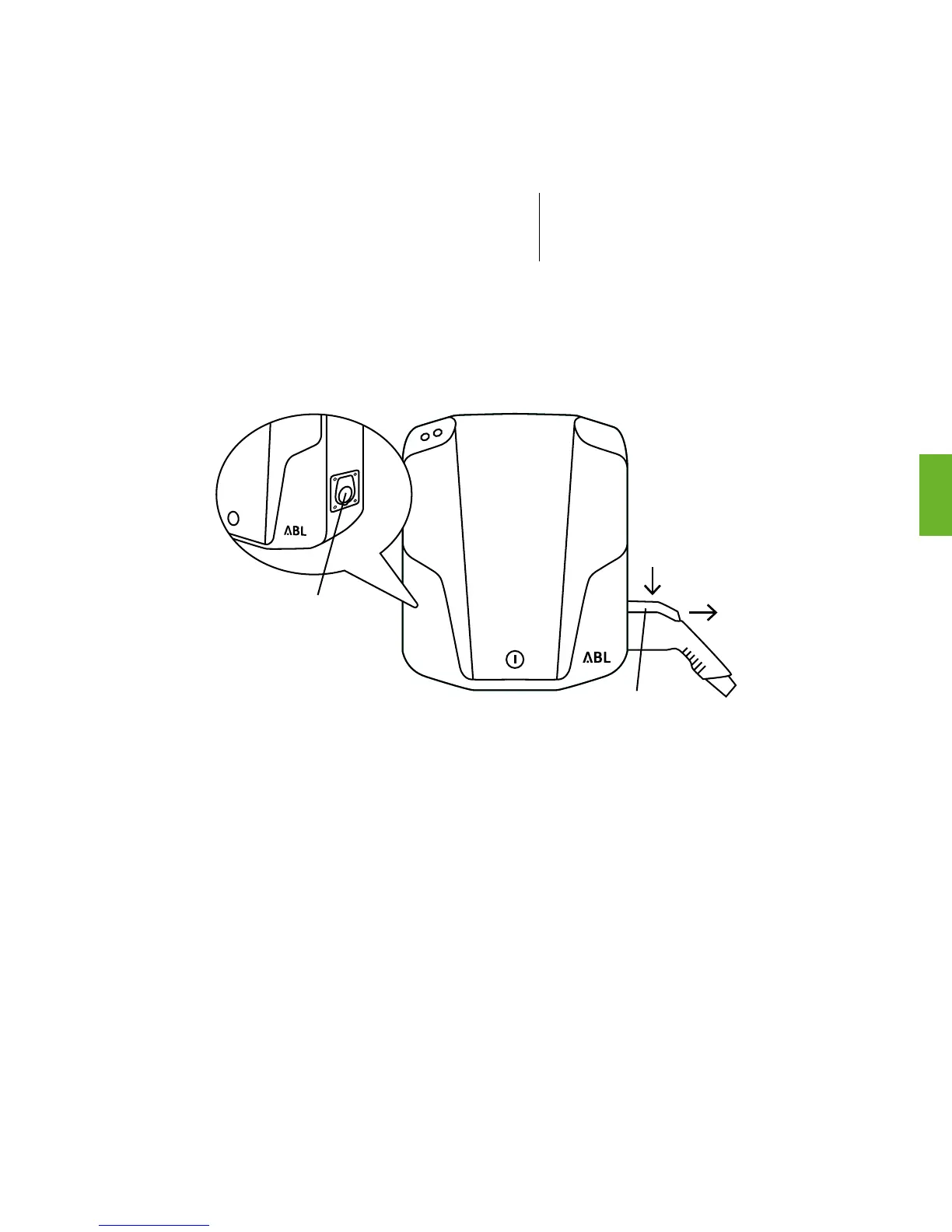

1 Keep the button on the Type
1 charging connector pressed
down. The button is located on
the top of the Type 1 charging
connector
2 Pull the Type 1 charging con-
nector from the Type 1 storage
compartment
TYPE 1 CHARGING CABLE
3 p. 29
4 p. 29
Type 1 storage
compartment
Button
