67
English

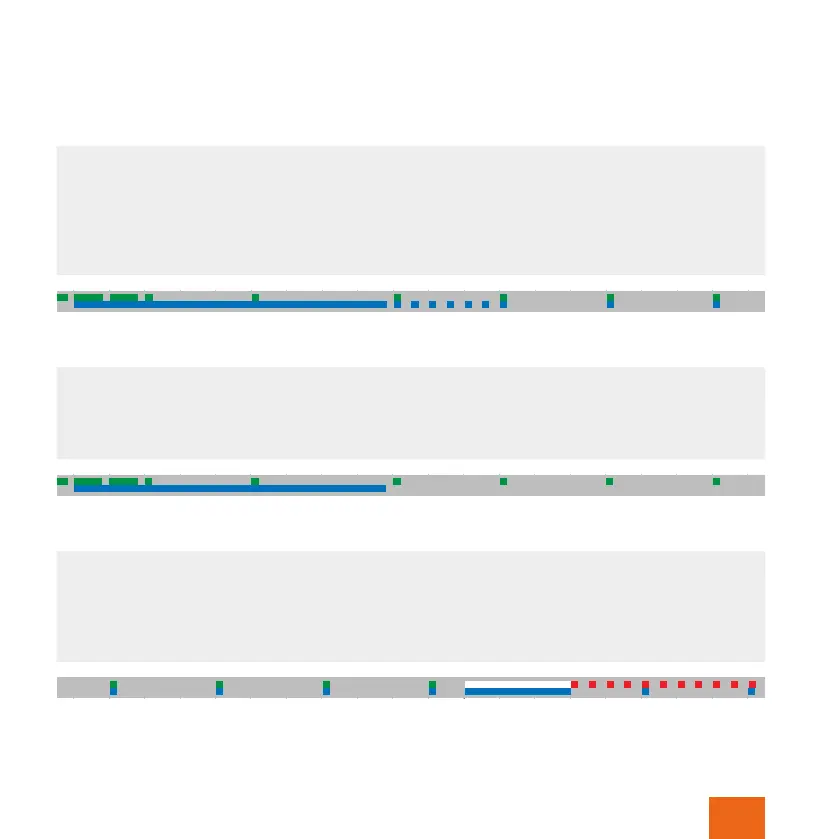

Group Ready / Grouped
After you press the function key, the system tries to find a group. The
bottom LED lights up blue during this time. If the system has found a
group, this is indicated by the bottom LED flashing blue rapidly for 3
seconds. You are now in group mode. The top and bottom LEDs then
blink green/blue with the same frequency.
Group Ready / No Group
After you press the function key, the system tries to find a group. The bot-
tom LED lights up blue during this time. If no group is found, the bottom
LED goes out and the top LED flashes green every 3 seconds.
Activate Group
If you or another member pull/pulls the activation handle in group mode,
all airbags are activated. The top LED lights up white for 3 seconds and
the bottom LED lights up blue for 3 seconds for everyone. Then the top
LED flashes red and no further activation is possible. The bottom LED is
inactive.
17. LED GROUP MODE
17.1 LED PARTNER ACTIVATION
abs20-ui-funk-0140
20160920/xlog/RM
Signalisierung UI
ABS 2.0 Funkauslösung
group ready/no group
group ready/grouped
single group
single single
5 6 7
time [s]
8 9 10 24 25
k k+1
press button
press button + pull handle
press button
group member activates remotely
activate remote airbag
only
being activated remotely
press button
pull handle
single single activation
group member activates remotely
activate group
pull handle
activated by group
group function remains active
group function remains active
group function remains active
group function remains active
re-group/grouped
abs20-ui-funk-0140
20160920/xlog/RM
Signalisierung UI
ABS 2.0 Funkauslösung
group ready/no group
group ready/grouped
single group
single single
5 6 7
time [s]
8 9 10 24 25
k k+1
press button
press button + pull handle
press button
group member activates remotely
activate remote airbag
only
being activated remotely
press button
pull handle
single single activation
group member activates remotely
activate group
pull handle
activated by group
group function remains active
group function remains active
group function remains active
group function remains active
re-group/grouped
abs20-ui-funk-0140
20160920/xlog/RM
Signalisierung UI
ABS 2.0 Funkauslösung
group ready/no group
group ready/grouped
single group
single single
5 6 7
time [s]
8 9 10 24 25
k k+1
press button
press button + pull handle
press button
group member activates remotely
activate remote airbag
only
being activated remotely
press button
pull handle
single single activation
group member activates remotely
activate group
pull handle
activated by group
group function remains active
group function remains active
group function remains active
group function remains active
re-group/grouped
