You are in single skier mode
If you are the group member who pressed the function key, your top LED
flashes green. Your bottom LED lights up blue for 1.5 seconds to show
you that the key has been pressed. It then flashes blue rapidly
Single skier in the group
If there is a single skier in the group, the top LED flashes green and
the bottom LED flashes 2x blue rapidly every 3 seconds for all other
members.
You activate for a single skier
A group member is a single skier: your bottom LED flashes 2x blue every
3 seconds to show you that there is a single skier. Pull the activation
handle with the function key pressed down in order to activate the airbag
of a single skier. The top LED continues to flash green slowly. The bottom
LED lights up blue for 3 seconds and then shows you the group status.

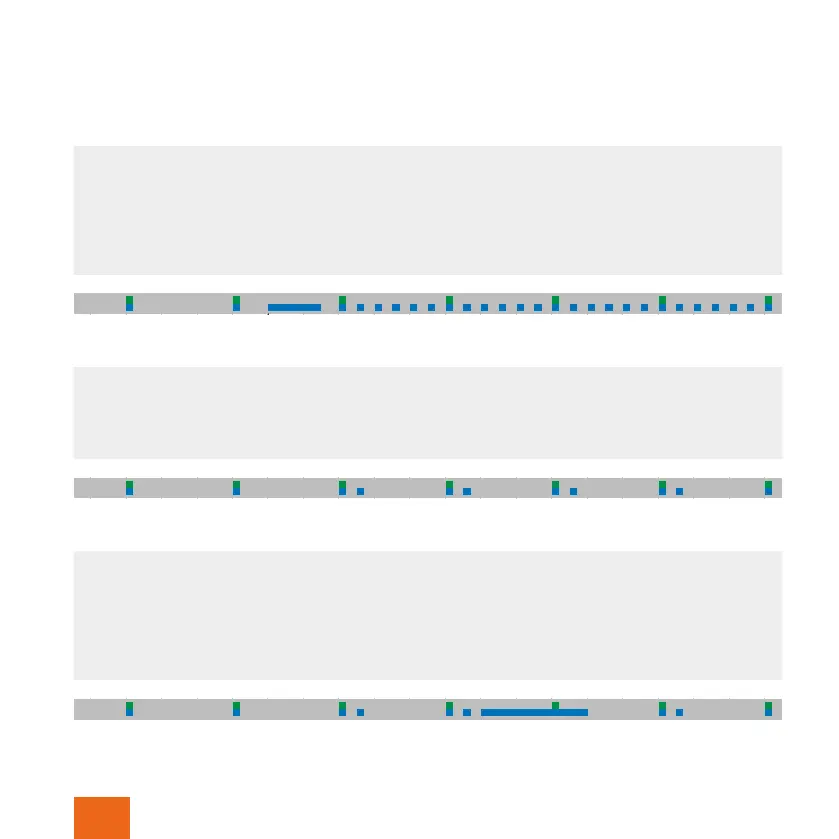

17.2 LED, SINGLE SKIER MODE
abs20-ui-funk-0140
20160920/xlog/RM
Signalisierung UI
ABS 2.0 Funkauslösung
group ready/no group
group ready/grouped
single group
single single
5 6 7
time [s]
8 9 10 24 25
k k+1
press button
press button + pull handle
press button
group member activates remotely
activate remote airbag
only
being activated remotely
press button
pull handle
single single activation
group member activates remotely
activate group
pull handle
activated by group
group function remains active
group function remains active
group function remains active
group function remains active
