Absen N3 - Floor Installation; Use Sub-Frame for Fast Installation

- 12 -
N Series User Manual
Leading LED Applications
Sub-frame
A floor support stand is required for floor installation, so that cabinets can be mounted onto the support
stand.
When installing, first fix 4 (2 to 4) cabinets onto the sub-frame, and then mount the sub-frame onto the steel
structure or wall, to achieve fast installation.
Note: Front or rear installation can also be used for sub-frame installation.

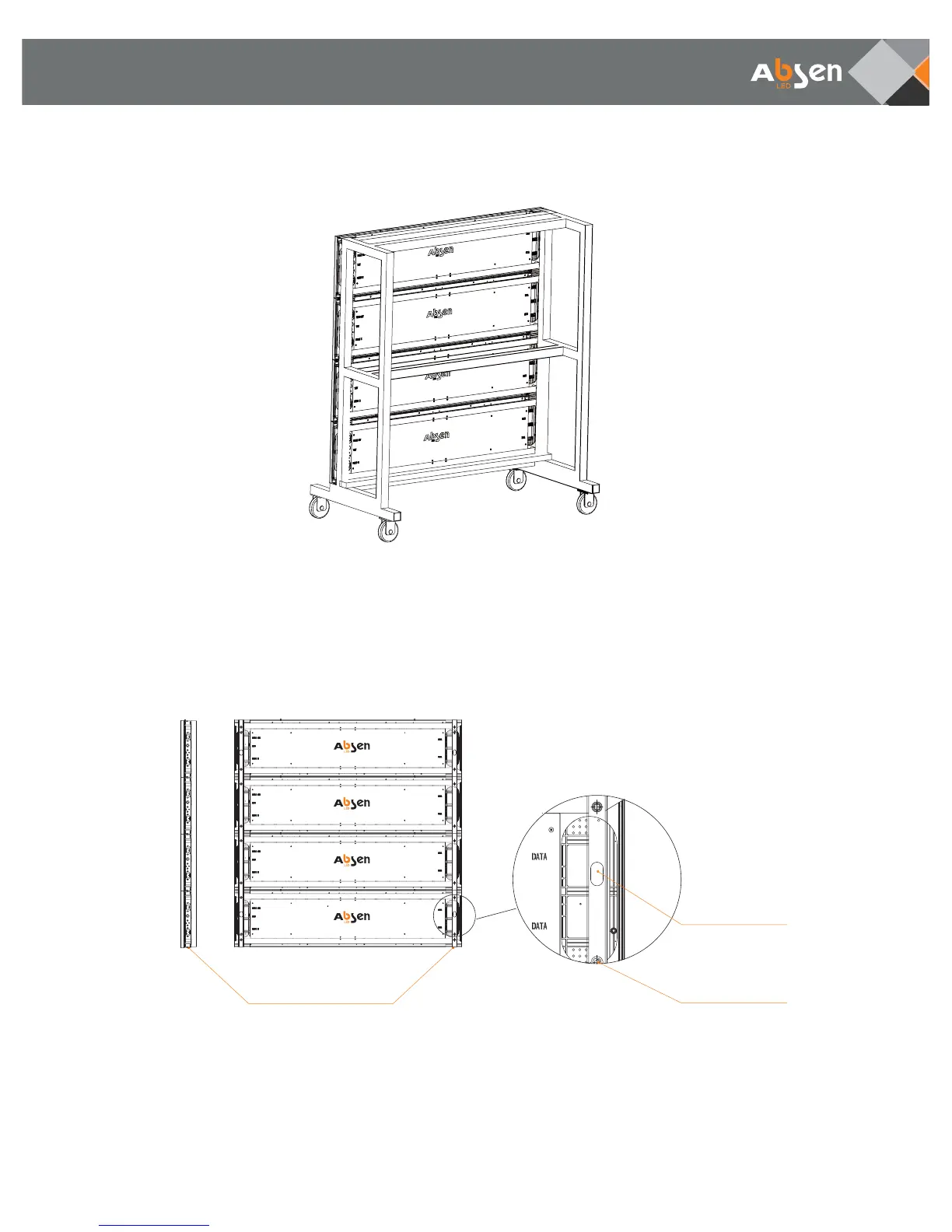

Floor Installation
Use Sub-frame for fast installation
Front installation hole
Rear installation hole
