lish

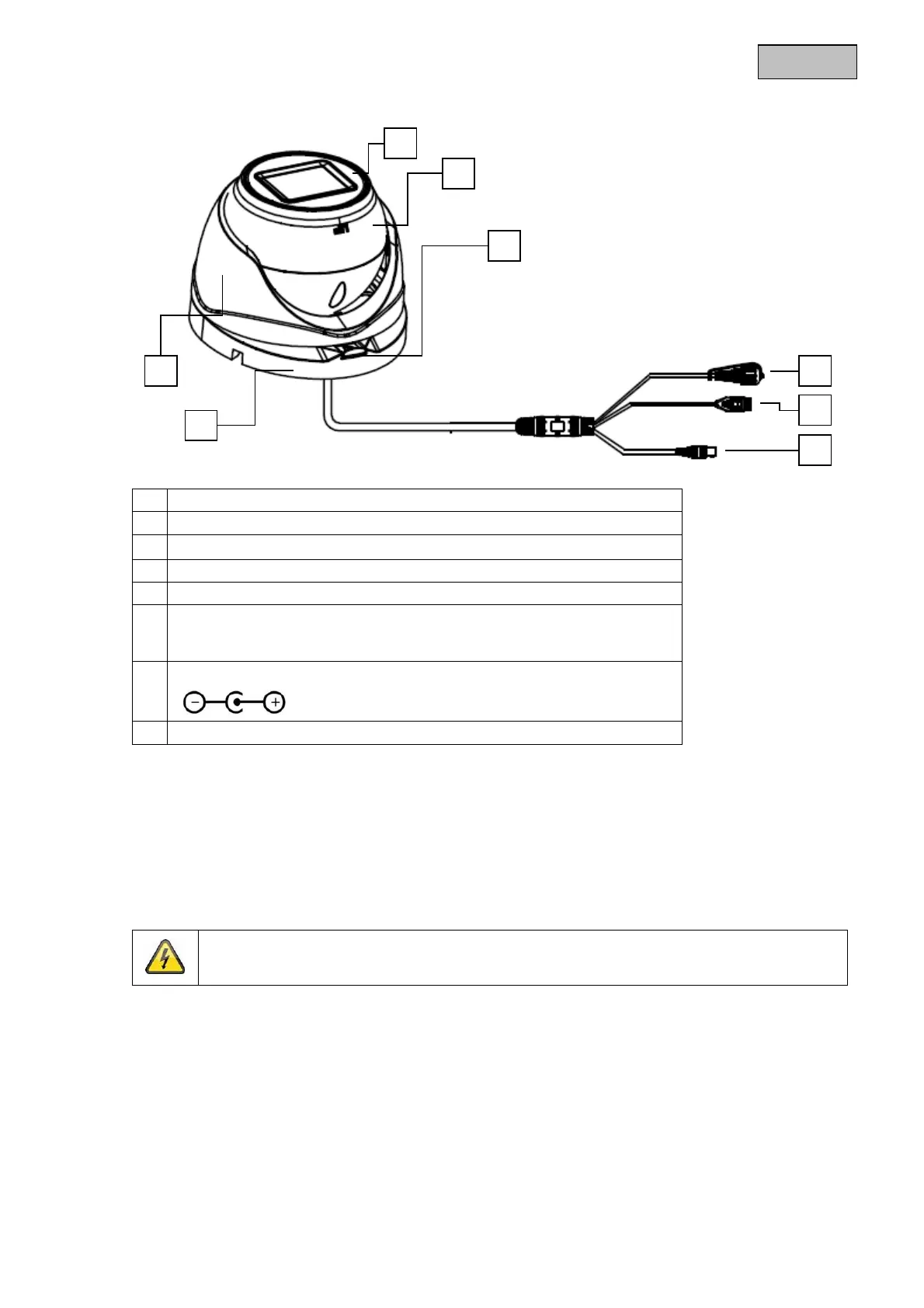

4. Camera description

1 Fixing element with fixing screws

2 Camera base plate

3 Camera cap

4 Camera head

5 IR LEDs

6 Button for switching between different video formats:

TVI / AHD / CVI / CVBS (keep the button pressed for longer than 3

seconds

)

7 Power supply connection (5.5 x 2.1 mm, barrel connector)

8 Video output (BNC, labelled 'TVI')

5. Mounting / Installation

5.1. Mounting the camera

IMPORTANT!

The camera must be disconnected from the power supply during installation.

Loosen the fixing screws on the camera base plate and remove them. Use the accompanying drilling

template for drilling the mounting holes.

If the cable is to be routed through the side, first guide the connecting cable through the base plate and

the side opening on the base plate.

Now fix the base plate in place.
