4. Camera description
HDCC75550

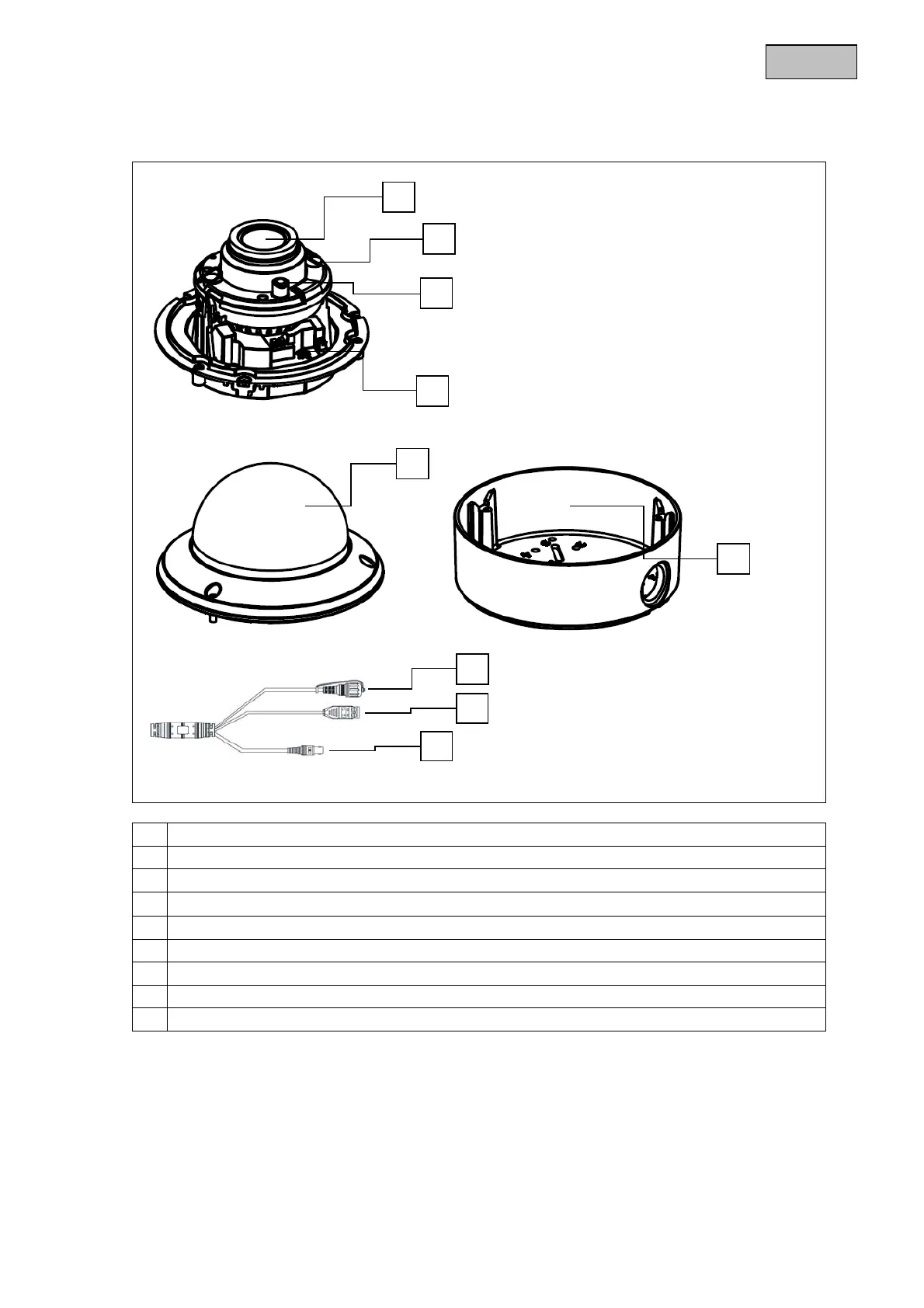

1 Camera module with lens
2 Infrared LED (2, to the left and right of the lens)
3 Photo sensor for day/night switching
4 Joystick for controlling the on-screen display
5 Dome
6 Installation adapter for surface mounting
7 Power supply (12 VDC or 24 VAC, 2-pin connection, polarity does not need to be observed)
8 HD-TVI video output (BNC, labelled 'TVI')
9 Additional analogue video output for service purposes (BNC, CVBS)
1
2
3
4
5
6
6
7
8
