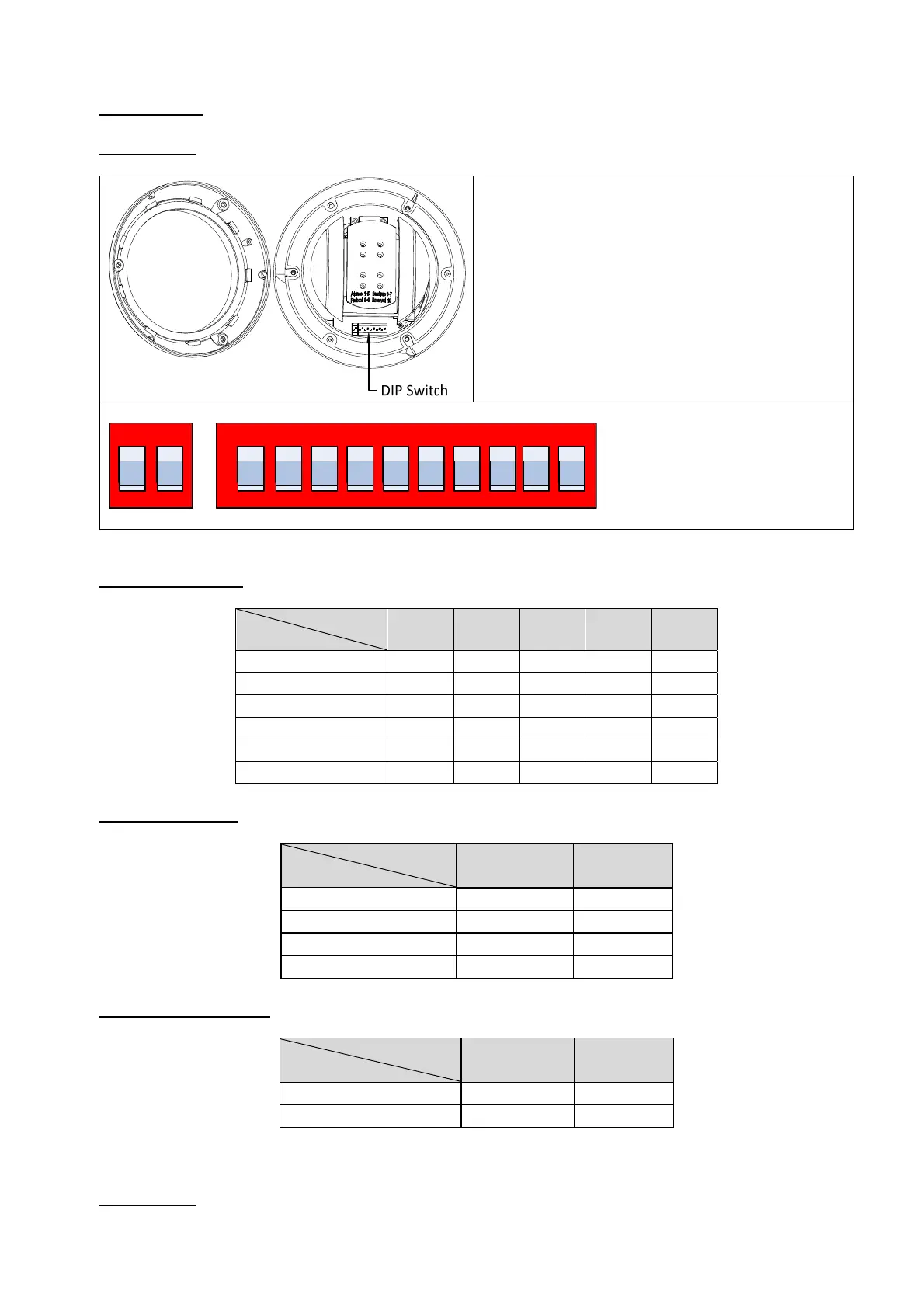

DIP-omskifter
HDCC81000
SW 1-5: Dome-ID-indstilling
SW 6-7:
Baudrateindstilling
SW 8-9:
Styreprotokolindstilling
SW 10:
ikke brugt
17564328910
ON DIP
12
ON
Dome-ID-indstilling
SW
Dome-ad.
1 2 3 4 5
0
OFF OFF OFF OFF OFF
1
ON OFF OFF OFF OFF
2
OFF ON OFF OFF OFF
3
ON ON OFF OFF OFF
…
……………
31
ON ON ON ON ON
Baudrateindstilling
SW
baudrate
6 7
2400 OFF OFF
4800 ON OFF
9600 OFF ON
19200 ON ON
Styreprotokolindstilling
SW
Protocol
8 9
Self-adaptive OFF OFF
Pelco_P ON OFF
HDCC82500
