Abus TVCC80000 - Mast Mount Dimensions and Installation (TVAC31230)

47
English
7.3 Mast mount installation (TVAC31230)

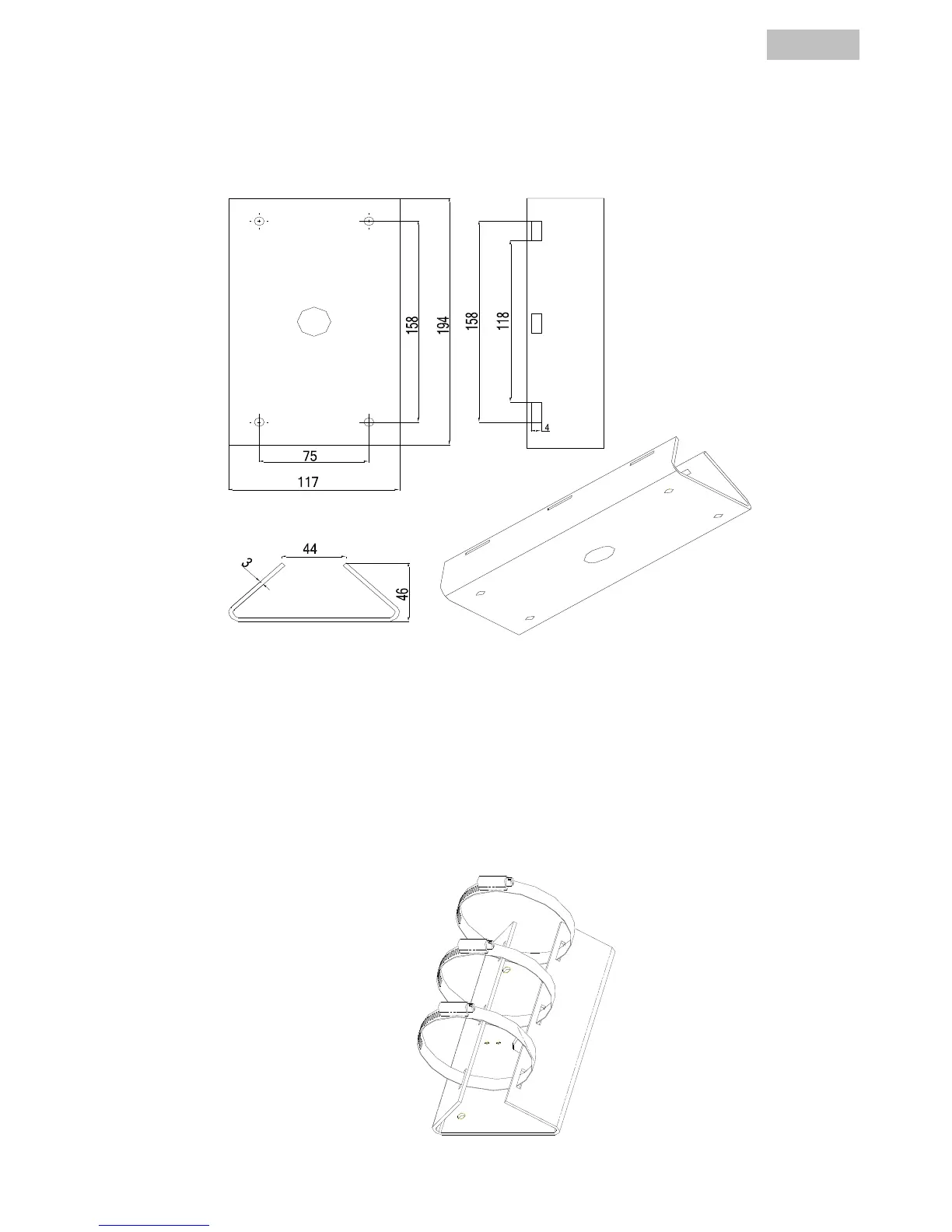

7.3.1 Dimensions
TVAC3130
7.3.2 Installation
Before starting:
 The diameter of the stainless steel clamps must be the same as the diameter of the mast.
 Make sure that the mast is strong enough to bear more than 8 times the weight of the Speed Dome
and its mount.
1. Undo the screws in the stainless steel clamps using a screwdriver.
2. Guide these through the openings in the mast mount.
