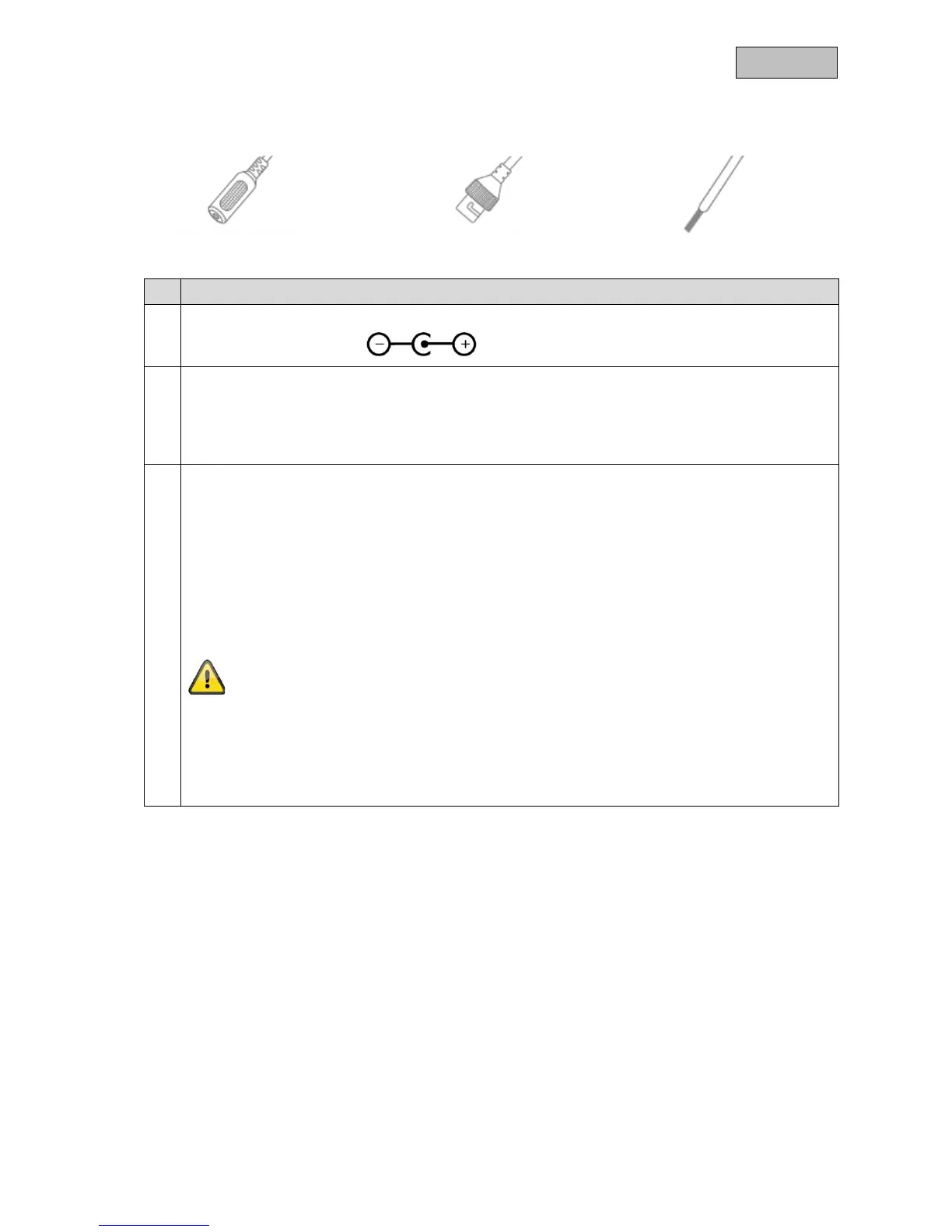

5. Description of the connections
No Description
Power supply 12 V DC
(Round plug 5.5 x 2.1 mm)
Network access (RJ45)
The network access includes a cover, which can be used if necessary. This cover provides
additional protection for the plug-in connector. When using the cover, the network cable must only
be connected (crimped) to the network plug once it has been passed through the cover. In addition,
the connections (as well as the power supply connection) can be sealed with insulation tape.
Breakout cable
Yellow/red Alarm input
Yellow/green Alarm output
Yellow/black Ground
White Audio input
Pink Audio output
Black Ground audio
Use the following wires for the different connection options.
Alarm input connection: Alarm input & Ground
Alarm output connection: Alarm output & Ground
Audio input connection: Audio input & Ground audio
Audio output connection: Audio output & Ground audio
