26

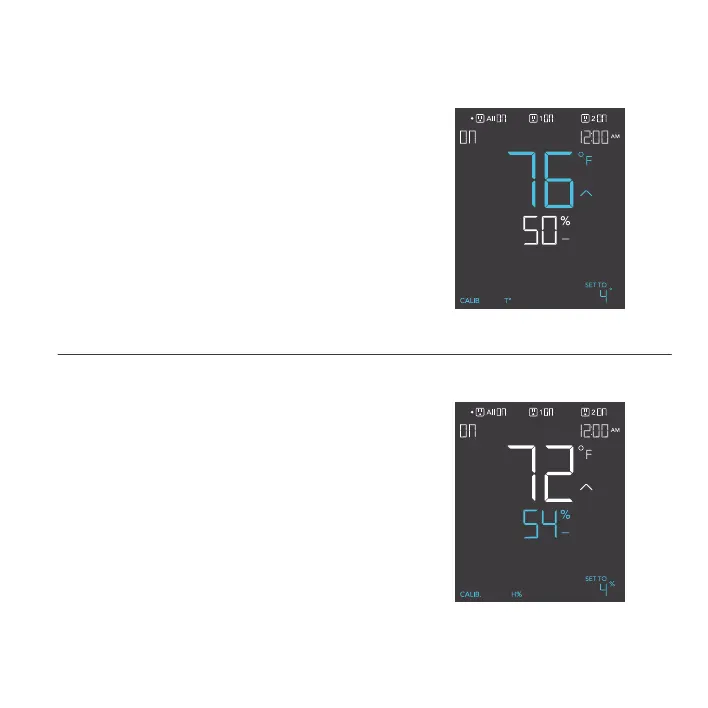

CALIBRATION TEMPERATURE SETTING
Adjusts the temperature reading the sensor probe is
measuring. Press the up or down button to increase
or decrease the value by 2°F (or 1°C) increments.
The calibration cycle ranges from -20°F to 20°F (or
-10°C to 10°C) and will be applied to the sensor
probe’s measurements.
CALIBRATION HUMIDITY SETTING
Adjusts the relative humidity reading the sensor probe
is measuring. Press the up or down button to increase
or decrease the data figure by 1% increments. The
calibration cycle ranges from -10% to 10% and will be
applied to the sensor probe’s measurements.
