5
Di

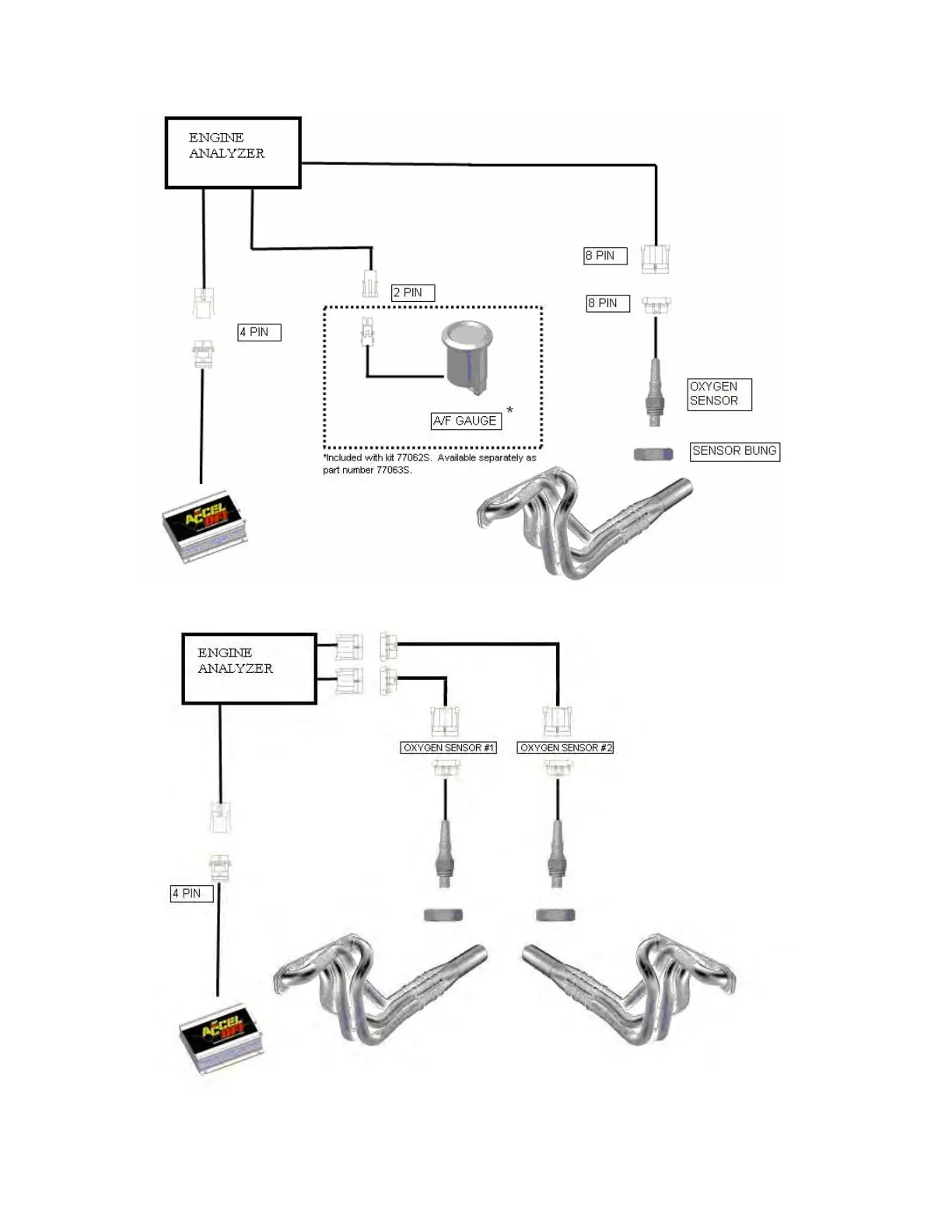

agram A – EA series module used with Accel DFI Gen 7+ Engine Management System
Diagram A1 – EA series module shown with optional dual wideband sensors
