6

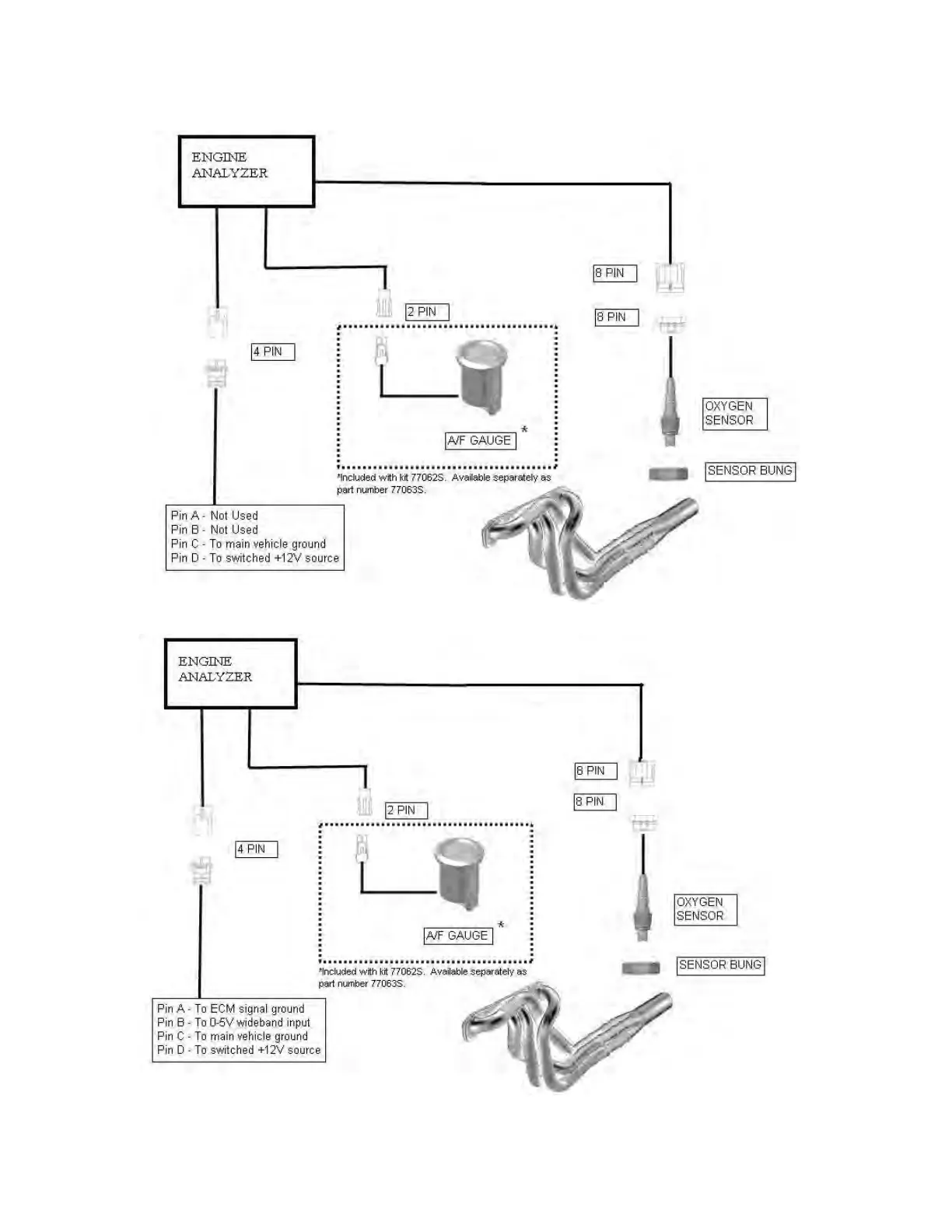

Di
agram B –EA series module used as a standalone air/fuel ratio meter
Diagram C – EA series module used with engine management system other than Accel DFI
