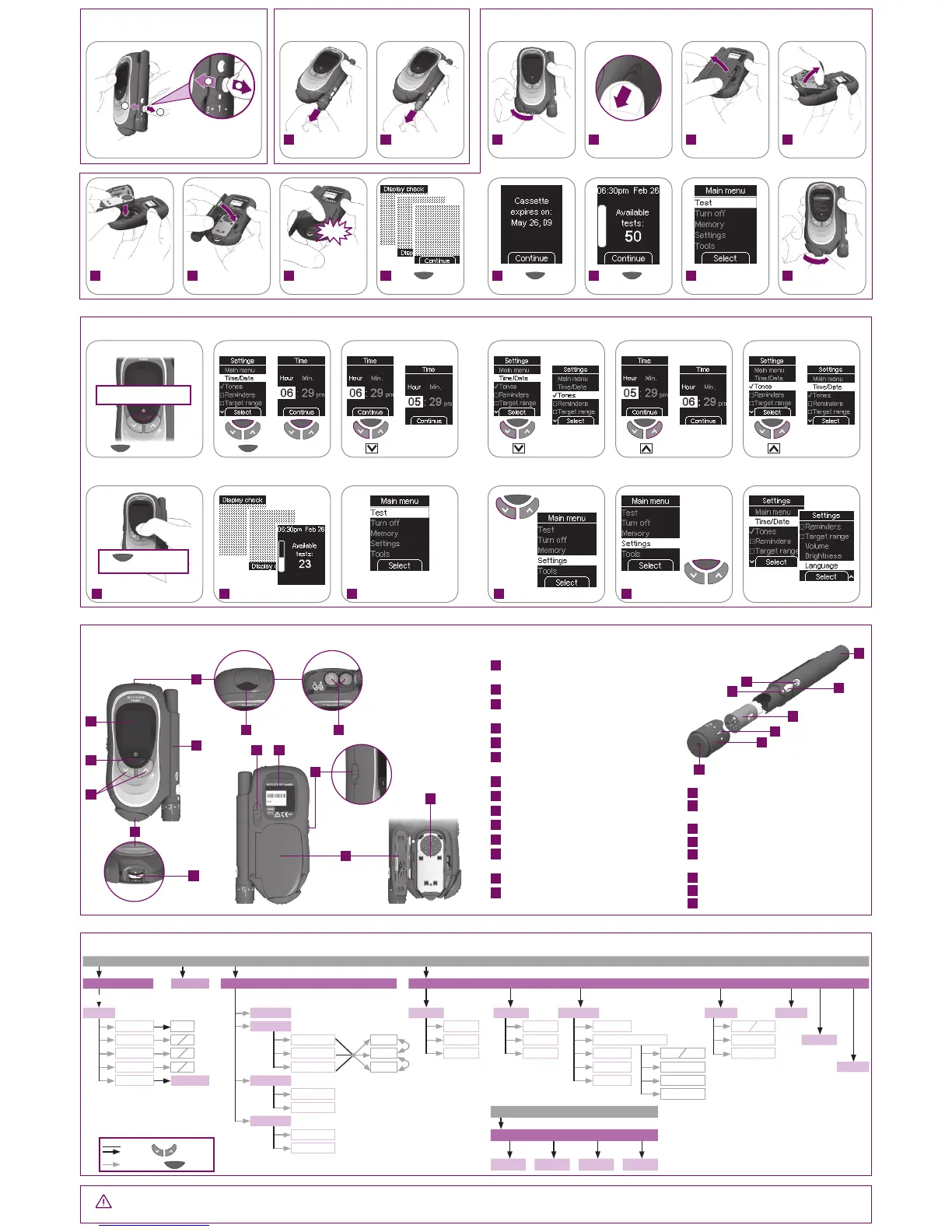

Accu-Chek Mobile Quick Reference Guide

1
2
1
7
8
9
11
13
6
5
4
16
17
18
19
21
20
22
15
2
3
10
14
12
1
2
Main menu
Test Turn off Memory Settings
Result
Set ag All results Time/Date Tones Reminders Target range Volume
Control test Color Averages Time Beeper New
Turn on
Turn off
General
On
Off
All results 7 days Date Reminders Edit Change Brightness
Before meal
On
Off
Before meal 14 days Time format
Acoust. mode
In 1 hour
Turn on
Turn off
Cancel
After meal
On
Off
After meal 30 days In 2 hours Change Language
Reminder Reminders Transfer data In 3 hours Delete
For analysis Cancel
Table to PC
Display format
Single value
List
Main menu
Tools
Display check Validity Clean Change cass.
Preparing the lancing device for obtaining
new blood sample: load new lancet
When all 6 lancets have been used:
remove lancet drum
Changing an empty cassette
Push lever to right and back again
1
Remove cap
2
Pull out drum
1
Open tip cover
2
Release cassette
compartment cover
3
Open cassette
compartment cover
4
Remove empty
cassette
5
Insert new cassette
9
Press button
6
Close cassette
compartment cover
10
Press button
7
Press cover to close
11
Main menu is
displayed
8
Press button
12
Close tip cover
CLICK
Functions of the buttons
Adjust settings
Overview of the meter Overview of the lancing device
Menu overview
Turning meter on or off
Press
button
Moving down a menu
Press button
1
Turn on meter
4
Select Settings
Executing a command
Press
button
Counting upwards
Press button
2
Wait for displays
5
Open Settings
Counting downwards
Press
button
Moving up a menu
Press button
3
Main menu is displayed Settings menu overview
press and hold longer than
2 seconds
press and hold
longer than 2 seconds
1
Battery compartment cover (right: from above; far
right: open)
2
Infrared window
3
Batteries [1.5 V, type AAA, alkaline-manganese or
high energy batteries (2 batteries required)]
4
Lancing device (docked)
5
Tip cover (bottom: open)
6
Test area (at the tip of the cassette ready for a test)
– this is where you apply the blood
7
Down/Up buttons
8
On/Off and Enter button
9
Display
10
Release button for undocking the lancing device
11
Type plate
12
Release button for opening the cassette compart-
ment cover
13
Cassette compartment cover (right: open)
14
Test cassette (in place in the meter)
15
Multifunction button (priming and lancing)
16
Lever for rotating the lancet drum and loading a new
lancet
17
Lancet drum containing 6 lancets
18
Numbers indicating penetration depth settings
19
Rotatable cap (rotating the cap on the device sets
the penetration depth)
20
Pin-hole opening for lancet
21
Penetration depth indicator
22
Window showing number of available lancets
Select with
Open or set with
This Quick Reference Guide is not a substitute for the full User’s Manual supplied with your
Accu-Chek Mobile blood glucose meter.
Please be sure to observe the safety information in the User’s Manual.

Accu-Chek Mobile Specifications

General

Measurement Technology	Photometric
Sample Type	Capillary whole blood
Sample Size	0.3 µL
Test Time	5 seconds
Battery Type	2 AAA batteries
Connectivity	USB
Dimensions	121 x 63 x 20 mm
Weight	129 g (with batteries)
Display	LCD
Memory Capacity	2000 results
Measuring Range	0.6 - 33.3 mmol/L
Operating Temperature	10 - 40°C
Operating Humidity	10 to 90% RH
Hematocrit Range	20 to 70%
Test Strip Technology	No test strips required (uses a test cassette)
