Connection to water supply and drainage [Connection of
water and drainage hoses]
Division
Proper water temperature
Water pressure
Hose to be used
ICE MAKING water supply
50 ~ 90
o
F
14.22 ~ 71.12 psi
20 ~ 80 psi
OD ø6.35
PE TUBE
NPT 3/8”
ICE MAKING drainage
-
-
ID ø20 hose
NPTF 3/4”
• If the temperature of the ICE MAKING water supply is too high, the amount of ICE MAKING may
be reduced,
• If the water pressure is too low, it may not be possible to freeze. In this case, an auxiliary
hydraulic pump should be installed.

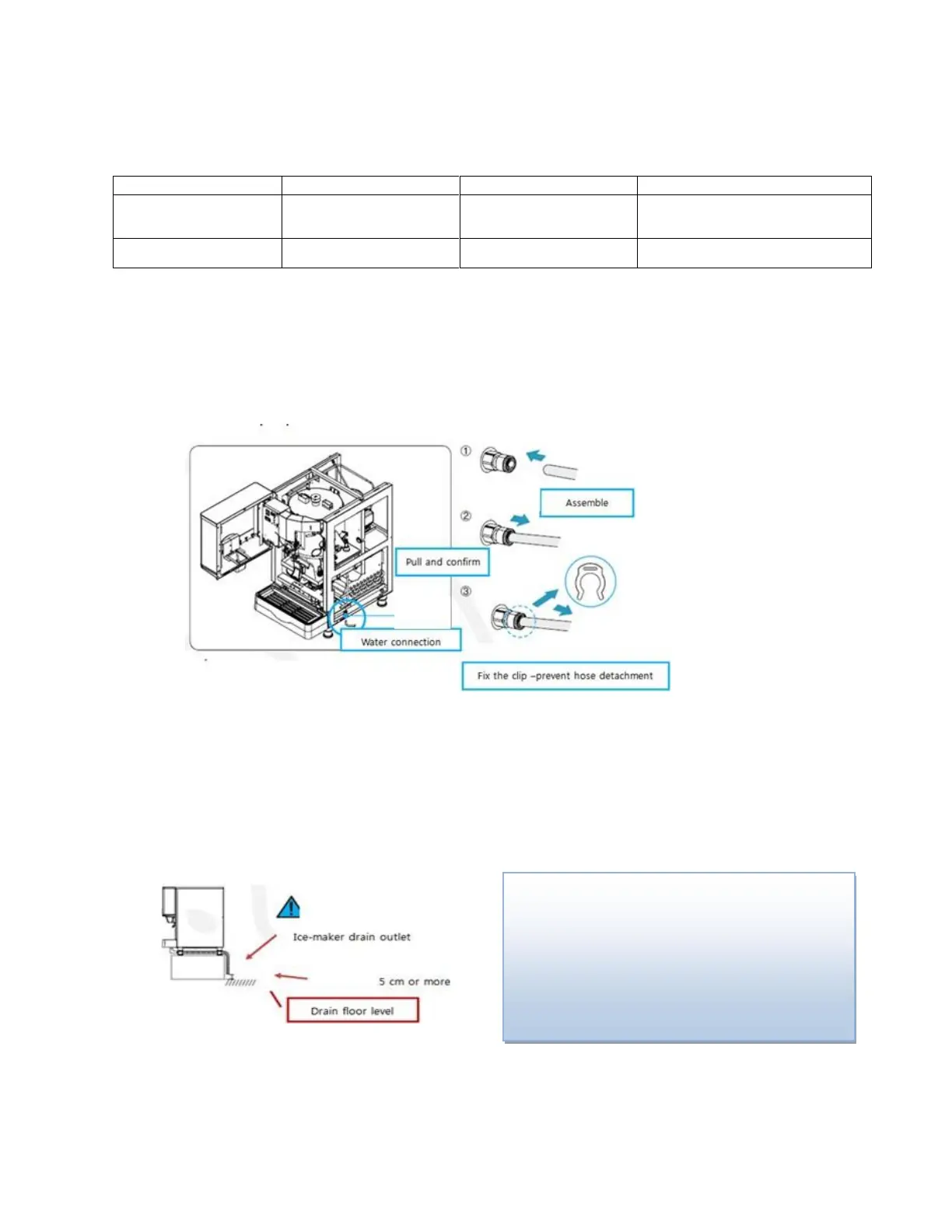

• Connect the ø6.35 PE TUBE to the bottom right of the product as shown in the picture and
secure the clip to prevent hose detachment.
After the installation is complete, please operate the product and check whether there is leakage in the water
supply and drainage parts.
• Please connect a hose with an inner diameter of Φ20mm or more for the ice making drain hose and the drain
outlet should be 5cm above the drain floor level. If the drain outlet dips in the drainage, the drainage may flow
back into the dispenser and damage the product and the floor.
Be careful not to bend the drainage hose during
the installation and also confirm that the hose is
not exposed to fire or sharpness which may result
in the hose burst (This will become the cause of
the PL accident and the manufacturer shall not be
held responsible)
