IO Modual
19

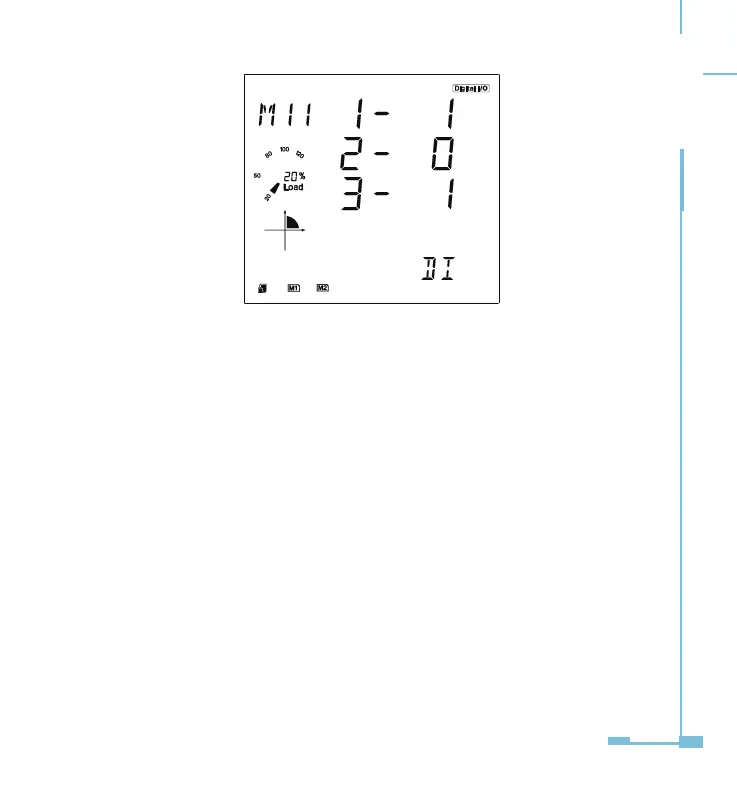

Figure 3-2 showing DI state on screen
2. Record of SOE
When digital input circuit is set to detect remote signals, function of
record of SOE can be enabled. So when the remote signals change,
IO module can record changing information, such as the time and the
change.
SOE Record: including “4399H to 4439H” address registers. “4399H
to 4438H” address registers record 20 groups of SOE records. “4439H”
records the IO module which generates the SOE records. For example, if
register “4439H” is 1, the 20 groups of SOE records are all generated by
AXM-IO11 (AXM-IO1 module in sub address 0).
The 20 groups of SOE records are arranged based on time. When more
than 20 groups of SOE records are generated, the records will begin at
the rst one.
When the Acuvim II meter is powered on, the SOE records will begin at
the rst one. The data of SOE records will not lose during power off.
