AccuEnergy Acuvim II AXM-IO1

IO Modual
23

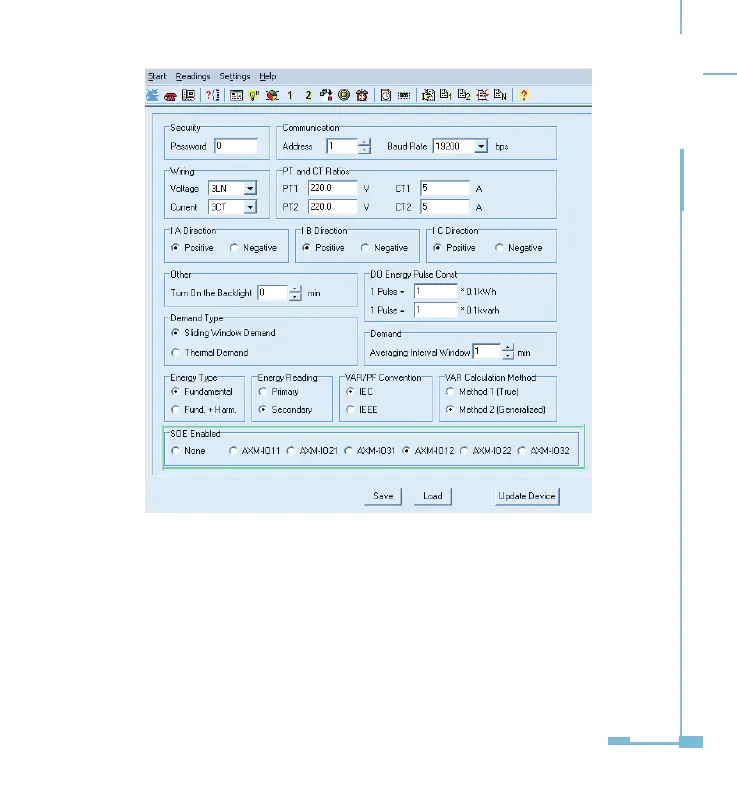

Figure 3-4 parameters setting of IO module’s SOE function
3.2 Counter of Pulses
The digital input circuit can also be set to be counter of pulses.
Recorded number of pulses: including “4349H to 4380H” address
registers. “4349H to 4380H” registers record 28 groups of number of
pulses, including 6 groups of records for AXM-IO11 (AXM-IO1 module in
sub address 0), 4 groups of records for AXM-IO21 (AXM-IO2 module in sub
