IO Modual

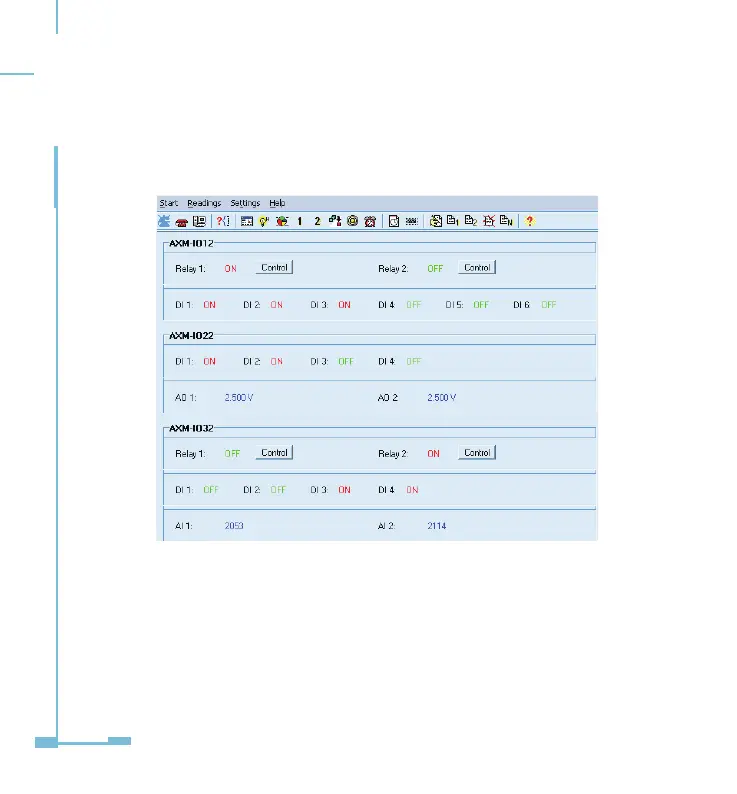

Figure 3-1 shows the function of IO modules, which is explicated in utility
software as follows, where AXM-IO12 (AXM-IO1 module in sub address
1), AXM-IO22 (AXM-IO2 module in sub address 1) and AXM-IO32 (AXM-IO3
module in sub address 1) are linked to Acuvim II meter.
Figure 3-1functions of IO modules
3.1 Detection of Remote Signals
The digital input circuit can be set to detect remote signals.
1. Detection of Remote Signals
When digital input circuit detects a qualied voltage input, it will show
“1” on screen and “ON” in utility software. Otherwise, it will show “0”
on screen and “OFF” in utility software.
