IO Modual

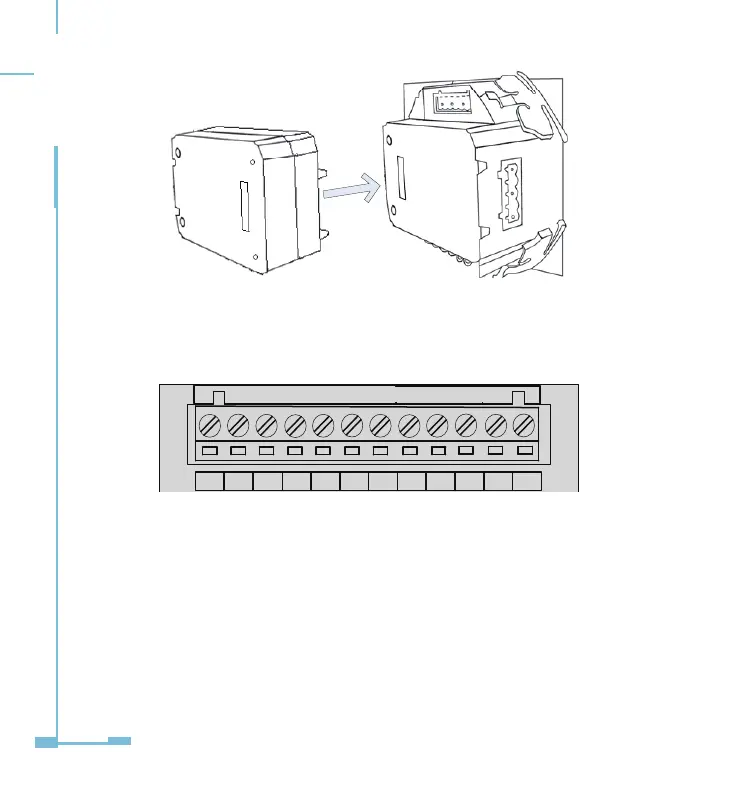

Figure 2-2 Installation of IO modules

2.3 Wiring of IO Modules

Terminal strips of AXM-IO1 module:

Figure2-3 Terminal strips of AXM-IO1 module

DI1 to DIC: digital input terminals, where DIC is the common terminal for

DI1 to DI6 circuits.

RO1 to ROC: relay output terminals, where ROC is the common terminal

for RO1 and RO2 circuits.

V24+ and V24-: auxiliary voltage supply terminals.

Terminal Strips of AXM-IO2 Module:

DI4DI3DI2DI1

DI5 DI6 DIC RO1 RO2 ROC V+ V–

Digital Input VDCRelay Output
